Product Introduction
>Product Introduction
CADI (Carbidic Austempered Ductile Iron) Grinding ball is a kind of carrier be used in ball mill / SAG mill in Mining concentration plant , to help crush & mill ore materials.
CADI grinding ball is the Mn/Si/Cr alloy steel ball by casting, this grinding ball material is ADI (Austempered Ductile Iron), finished product hardness is HRC52-58, and after used, this grinding ball surface hardness will be HRC61-63.
This CADI grinding ball impact toughness can be more than 10 J/m2, So it can be used to SAG & Ball mill which mill machinery diameter size more than 6 meters. Its breakage rate probably same as Forged steel ball, but its comsumption amount will be less than Forgedl, probably same as High chromium casting ball.
>Product Advantage
Lower breakage rate
Because this CADI cast grinding ball have higher hardness, and high impact toughness , so the gridning media consumption cost will be better than Forged steel ball and Lower chrome casting ball.
lower breakage & out-of-roundness rate
Depend on controlling raw material quality / advanced casting production equipment & special heat-treatment processing, The CADI cast grinding ball product of NGZR have good Physical Property, large size (more than 100 mm) CADI grinding ball breakage & Out-of-roundness rate will less than 1%; Small size casting ball breakage & Out-of-roundness rate will less than 0.5%
Technical Parameters
>Technical Parameters
#1 Alloy Chemical Composition: | ||||||||||
Cast grinding ball Name |
Item | Chemical Composition ( % ) | ||||||||
C | Si | Mn | Cr | Mo | Cu | Ni | P | S | ||
CADI | ZQCADI | 3.2-3.8 | 2.0-3.0 | 0.5-3.5 | 0.2-1.5 | ≤1.0 | ≤1.0 | - | ≤0.05 | ≤0.03 |
#2 Product Physical Technical: | ||||||
Cast grinding ball Name |
Item | Physical Technical | ||||
Surface Hardness | Breakage Rate | Impact fatigue Falling ball times | Impact Value ( J /cm2 ) | Micro- structure | ||
CADI | ZQCADI | HRC ≥ 50 | ≤ 1.0 % | ≥ 15000 | 8-25 | M+AF+ GJS |
Remark: M= Martensite ; C= Carbide ; P= Pearlite ; AF= Acicular Ferrite ; GJS= spheroidal graphite | ||||||

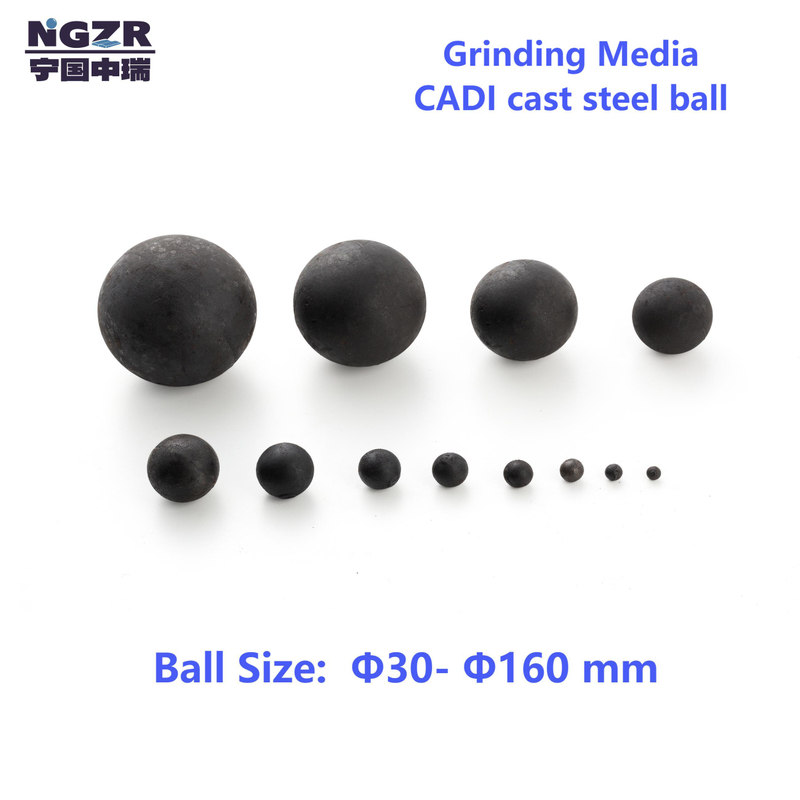

Product Size Φ（mm） | Φ40 / Φ50 /Φ60 | Φ70 /Φ80 | Φ90 /Φ100 | Φ110 /Φ120 | Φ125/Φ130/ Φ140 /Φ150/Φ160 |
Diameter Tolerance | + 1.5 mm - 1.0 mm | + 2.0 mm - 1.0 mm | + 2.5 mm - 1.0 mm | + 3.0 mm - 1.0 mm | + 3.5 mm - 2.0 mm |
#4 Product Weigth : | ||||||||
Size (mm) | Φ40 | Φ50 | Φ60 | Φ70 | Φ80 | Φ90 | Φ100 | Φ110 |
Weight (kg /pcs) | 0.26 | 0.51 | 0.86 | 1.37 | 2.05 | 2.9 | 4.0 | 5.3 |
Q’ty (pcs) per mt | 3891 | 2000 | 1153 | 729 | 487 | 345 | 250 | 188 |
Size (mm) | Φ120 | Φ125 | Φ130 | Φ140 | Φ150 | Φ160 | ||
Weight (kg/pcs) | 6.8 | 7.75 | 8.74 | 10.9 | 13.4 | 16.3 | ||
Q’ty (pcs) per mt | 147 | 129 | 114 | 90 | 74 | 61 | ||
Product Uses
>Product Application
This CADI cast steelg ball is a consumable grinding media, be used to mill & grinding raw material such as mineral ore block to powder by equipment of Ball mill / SAG mill , The application industries as:
1.Mining
Wildly used to mineral processing for Iron mine/ Copper mine /Gold mine Sliver mine/ Lead-Zinc mine / Bauxite mine/ Nickel mine / Manganese mine / Chromium mine / Lithium carbonate mine / Graphite mine / Fluoride mine /Quartz mine etc.
>Product Uses
How to select right type /size and quantity of grinding media?
1.Follow the mill machinery size
In general, The mill machine have larger diameter size , input raw ore with larger size and get higher grinding efficiency, need to select large size grinding ball. When the mill diameter size more than 6 meters, the grinding ball breakage rate will be higher, that should be selecting the grinding ball with high toughness, that need your grinding media supplier make special manufacturing for you.
2.Follow the type of mineral and input & output raw ore size
In mineral processing plant, one stage grinding used large size grinding ball, the secondary fine grinding used small size grinding ball, This CADI grinding media steel ball will get less wear cost and high grinding efficiency.
3.First installation loading grindng media size proportioning
Ball mill first installation , grinding ball quantity should be 35-45% of whole ball mill loading weight, to Follow mill speed / input mineral size /output size and grinding efficiency to adjust grinding media loading weight. First installation will loading 3-5 different size grinding ball, and middle size ball quantity should me more than 50%, thereafter, add large size ball quantity follow the grind media consumption.
FAQ
>FAQ
How to get a price ?
Please send all informations of your required (you can choose item on RFQ list )to us by E-mail, we will check and send commerical offer or Proforma Invoice to you within 3 working days.
How to get sample test report ?
We can arrange to send sample to The third party testing agency such as SGS to test sample, then we will send sample test report to you.
Or we can send sample to you by express, you arrange to test sample.
What is your MOQ ?
This Forged grinding media steel ball MOQ is 1 tons per each size, 20 tons per each shipment;
But in order to save the export & transport & shipping charge, each shipment quantiy more than 100 tons , the charge will be less
What is your order Lead-time ?
Order Quantity less than 500 mt, the lead-time is 15-20 days after got deposit;
Order Quantity is 500-2000 mt, the first 500 mt need 15 days, balance will be 30-45 days;
Order Quantity is 2000-50000 mt, first 500 mt need 15 days, balance will be 2000 mt each month;
What is your export product package ?
1.Ton bag , 1000 kg per bag;

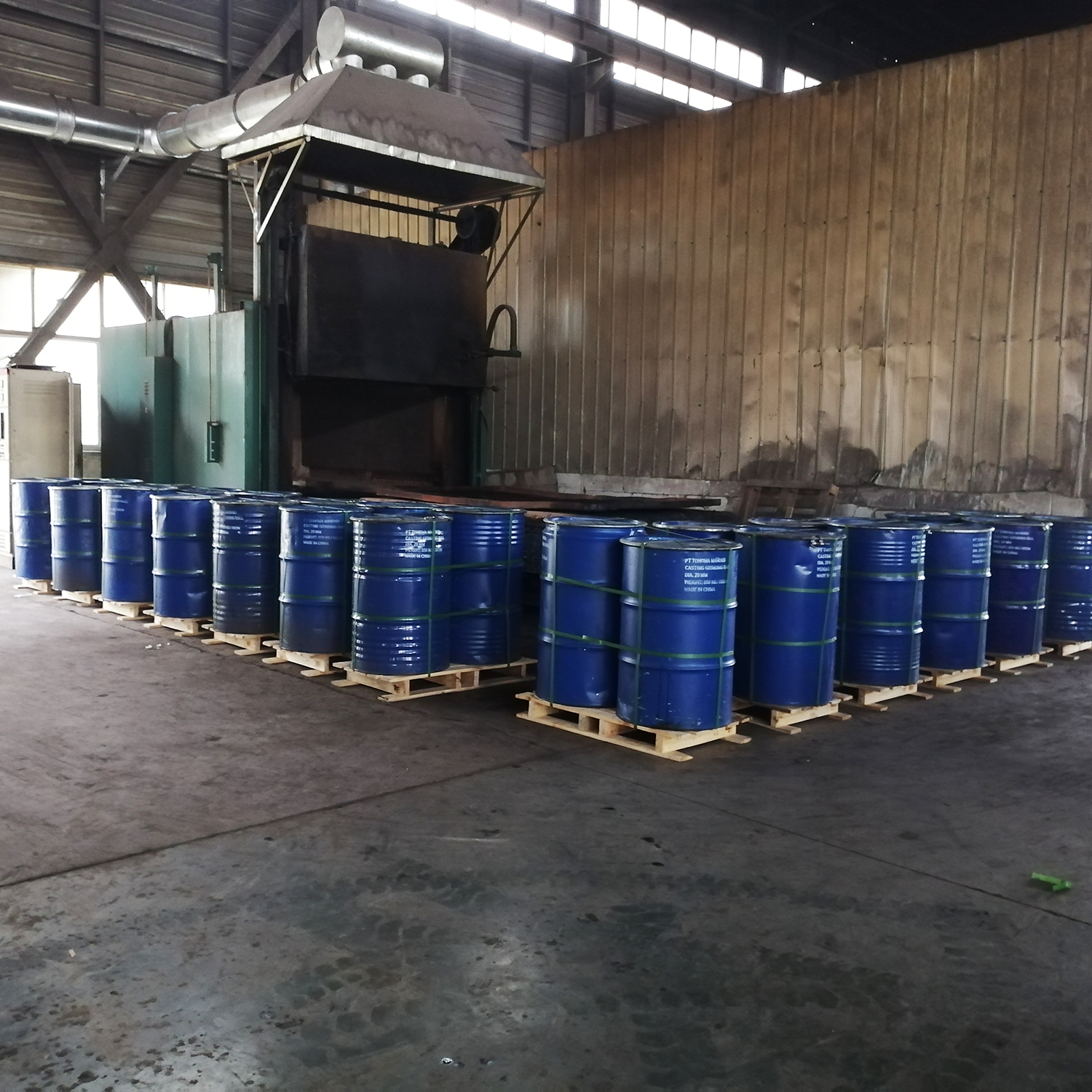

2.Metal drum + Wooden pallet, 800-1000 kg per drum, 2 drums on one pallet.
For oversea customer, we will shipping with container ( 20 feet container loading 20-25 mt) , or transport by train with container.
What is your payment term ?
With different order quantity , We accept different payment term as below:
1. 30% T/T in advance, balance T/T before shipment ( Quantiy less than 500 tons);
2. 20% T/T in advance, balance O/A 30-60 days ( Quantiy 500-5,000 tons);
3. 10% T/T in advance, balance O/A 60-180 days ( Quantiy more than 5,000 tons);
What is your price term ? How to loading cargoes?
We can do price term as below:
#1 EXW factory, including VAT tax, Loading cargoes in our factory ( Ningguo city, Anhui );
#2 FOB Shanghai / Ningbo Port, Container loading cargoes in our factory;
#3 CIF Port of delivery, Shipping with container by sea;
#4 DAP place of delivery;
