The crushing chamber profile serves as the primary mechanical variable controlling overall plant profitability. It dictates both absolute tons per hour (TPH) and your final product gradation. Selecting mismatched crusher liners immediately causes costly operational issues. Operators experience frequent material bridging. They also face off-spec product generation and excessive recirculating loads. These issues ultimately drive premature component wear across the entire circuit. To prevent these bottlenecks, plant managers need a systematic approach. This article provides an evidence-based framework for evaluating chamber geometry. We will explore how specific liner profiles impact operational performance directly. You will learn how to select the right profile for your specific feed conditions. Proper selection minimizes downtime and maximizes crushing efficiency.
The interaction between the cone crusher mantle and bowl liner defines the nip angle, which directly controls the maximum feed size and crushing efficiency.
Finer profiles restrict feed openings but increase single-pass reduction ratios, while coarse profiles maximize throughput but may require extensive closed-circuit recirculation.
Liner wear alters the chamber geometry over time, meaning throughput and product size consistency will degrade if wear patterns are not accounted for in the initial profile selection.
Optimizing chamber design requires balancing the Closed Side Setting (CSS), feed gradation, and rock hardness (Work Index).

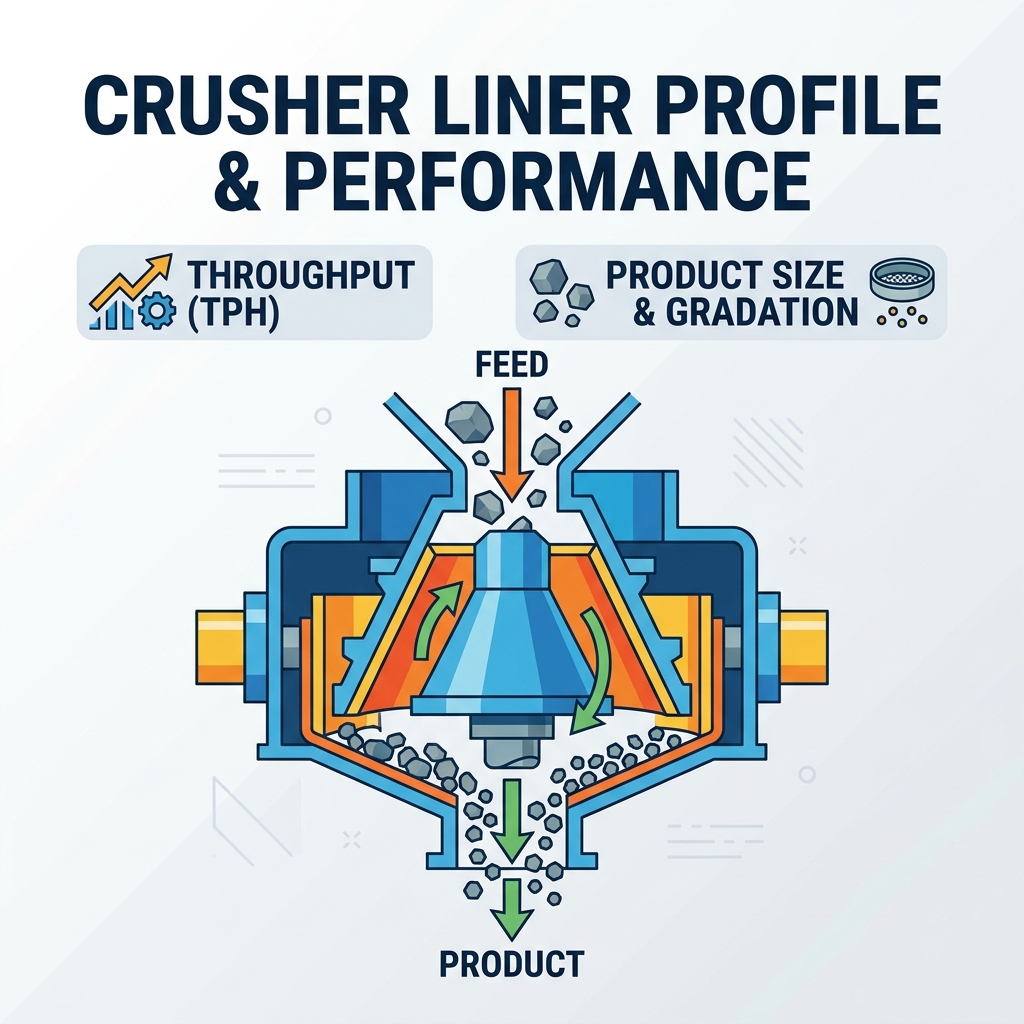

To optimize production, you must first understand how the crushing cavity functions geometrically. The spatial relationship between the fixed stationary component and the moving oscillating component creates the active crushing zone. Rock enters at the top feed opening. Gravity pulls the material downward. The mantle oscillates eccentrically, crushing rock against the stationary bowl repeatedly. This mechanical action reduces large feed into smaller, uniform aggregate. Managing this spatial relationship effectively defines your operational success.
The nip angle plays a critical role in how efficiently this process works. This specific angle dictates how the liners physically grip the incoming rock. Industry standards define a strict critical threshold here. It typically ranges between 21° and 24°, depending heavily on your material characteristics. Exceeding this angle causes immediate material slippage. The rock bounces upward instead of pulling downward. Slippage reduces throughput rapidly. It also accelerates abrasive wear along the upper manganese surfaces, shortening part lifespan.
Operators constantly navigate a mechanical trade-off between the feed opening and the bottom setting. You must accommodate large feed material at the Open Side Setting (OSS). Simultaneously, you must achieve your strict target product size at the Closed Side Setting (CSS). Balancing these two parameters requires highly precise geometry. Designing an optimal cavity means configuring the Cone Crusher Mantle and Bowl Liner to handle your largest input rocks while still delivering the precise output size your downstream screens demand.
Manufacturers engineer distinct profile categories to serve different stages of the comminution process. Coarse and extra-coarse profiles operate best in primary or secondary stages. They process larger aggregate efficiently. They also generate significantly lower fines production. Conversely, medium and fine profiles handle tertiary and quaternary stages. These aggressive profiles demand a strict CSS. They maintain high cubicity and prevent costly off-spec tolerances in your final product.
The liner profile exerts massive influence over your final particle shape. Cubicity depends heavily on the geometry of the parallel zone. This zone sits at the lowest section of the liner profile. Here, the mantle and bowl run strictly parallel for a defined vertical distance. This parallel zone ensures material undergoes multiple crushing impacts before exiting the chamber. A longer parallel zone improves cubicity significantly. However, a longer parallel zone inherently restricts your maximum TPH. You trade absolute capacity for shape quality.
Failing to match the profile to the application generates severe recirculating loads. Improperly selected Crusher Liners allow oversized flat material to pass through. This forces high recirculating loads back into the plant. Conveyers and screens strain under this excess recirculating volume. Your plant wastes massive amounts of electrical energy re-crushing the exact same rock multiple times. Minimizing recirculating loads requires selecting a profile capable of hitting your reduction ratio targets in a single pass.
Profile Category | Primary Application Stage | Parallel Zone Length | Typical Focus |
|---|---|---|---|
Extra-Coarse / Coarse | Primary & Secondary | Short | Maximum volume, large feed intake |
Medium | Secondary & Tertiary | Moderate | Balance of reduction ratio and TPH |
Fine / Extra-Fine | Tertiary & Quaternary | Long | Strict cubicity, fines generation |
Every crushing cavity possesses hard volumetric capacity limits. Chamber volume sets the absolute maximum limit for tons per hour. You simply cannot push more rock than the physical void allows. When operators try to force higher feed rates through a restrictive fine profile, the machine overflows. Understanding your specific cavity volume prevents setting unrealistic production targets. It grounds your operational goals in pure physical mechanics.
Maximizing actual throughput demands continuous choke feeding. The chamber must remain completely full of rock during operation. Selecting a profile mismatched to your feed gradation ruins this strategy completely. A restrictive feed opening prevents true choke feeding. The crushing chamber starves below the restriction. This creates uneven wear and drops TPH sharply. Operators must ensure their chosen feed opening easily swallows their top feed size to maintain a consistent material head.
Production risks multiply exponentially when feeding oversized material. If rock exceeds the chosen feed opening, bridging occurs. Large rocks wedge together in the upper chamber. This blocks all incoming material. Bridging causes temporary plant halts immediately. Operators must physically clear the heavy blockage. This poses extreme safety risks to maintenance crews. It also destroys daily production quotas. Selecting a slightly coarser profile eliminates bridging risks entirely.
Chamber profiles never remain static during operation. Manganese steel work-hardens upon repeated impact. It also wears away continuously as abrasive rock flows downward. The initial cavity shape transforms weekly. Recognizing this dynamic geometry alteration separates proactive managers from reactive ones. You must account for how the profile will look at 50% wear, not just on day one.
Throughput and gradation degrade predictably as parts wear down. The critical parallel zone diminishes over time. This physical loss creates a wider effective CSS. The machine produces coarser material as a result. Fine product yield drops considerably. Operators compensate by adjusting the CSS tighter. Eventually, you run out of adjustment range. At this point, the degraded profile can no longer produce spec material.
Trickle feeding or wrong profile selection causes severe localized wear. When the chamber is not choke-fed, rock primarily grinds against the lower sections. This concentrated abrasion manifests as cupping. Cupping forces premature liner replacement. You must discard heavy manganese parts before consuming their total available mass. Proper profile selection ensures wear distributes evenly across the entire crushing surface.
Operators should transition from reactive to predictive changeouts. Establish baseline performance metrics early in the liner lifespan. Monitor the following indicators to signal when wear alters product size fundamentally:
Daily Power Draw: Noticeable spikes or erratic drops indicate slippage or lost cavity efficiency.
CSS Adjustment Limits: Reaching the maximum thread adjustment signals the parallel zone has vanished.
Gradation Shifts: Sudden increases in recirculating oversized material indicate lost single-pass reduction capability.
TPH Drops: A steady decline in overall tonnage points to compromised intake geometry.
Selecting the optimal profile requires following a strict evaluation framework. Guesswork leads to rapid failure. Plant managers must analyze their specific site conditions methodically. Follow these four steps to match your wear parts to your exact production demands.
Audit Current Feed Material: Do not rely on theoretical plant design feeds from original manuals. Measure the F80 (80% passing size) of your actual daily feed. Quarry conditions change. Blasting methods evolve. You need real-world data to determine your required feed opening.
Define Success Criteria: Prioritize your goals clearly. You must balance maximum volumetric throughput against strict final product gradation. You cannot always maximize both simultaneously. Determine if your market demands volume or strict particle shape.
Match Profile to Crusher Kinematics: Align your chosen profile against specific crusher kinematics. Consider the eccentric throw. Factor in the operating RPM. These mechanical variables dictate how material flows through the cavity. High-speed machines behave differently than older, slower units.
Alloy Considerations for Wear Life: Evaluate manganese options based on your specific rock abrasiveness. Silica content determines the wear rate. Common options include 14%, 18%, and 22% manganese alloys. Higher manganese content resists abrasive wear better in highly siliceous applications. It ensures your profile holds its intended shape longer.
Crusher liner selection requires continuous optimization. It is never a static, one-time purchase. The geometry of your chamber directly governs your ability to hit production targets. Failing to match your profile to your feed size guarantees inefficient operation. It causes bridging, forces extreme recirculating loads, and accelerates component failure.
Plant managers must conduct regular chamber profile audits. Match your current daily feed gradations against your existing liner blueprints. Check your CSS targets against your actual output samples. If your parallel zone vanishes too quickly, your initial profile choice was likely incorrect. Adjusting your geometry yields immediate efficiency gains.
Take proactive steps today. Consult application engineers to model your crushing chambers using specific site data. Analyze your F80, your required CSS, and your rock hardness objectively. Perform this engineering review before placing your next wear parts order. Doing so guarantees higher throughput and significantly better final product shape.
A: No. Mixing mismatched profiles destroys the intended chamber geometry. It alters the nip angle drastically. This causes severe rock slippage, uneven localized wear, and erratic power draw. Always install matched sets designed for your specific feed gradation and target output.
A: Throughput can drop by 10% to 15% near the end of a wear cycle. As the parallel zone wears away, the CSS effectively widens. Material flows through faster but coarser, increasing recirculating loads and ultimately bottlenecking total plant capacity.
A: This usually stems from improper feed distribution or segregation. If fine material continuously hits one side of the mantle, localized wear accelerates. A mismatched profile or failing to maintain a consistent choke-fed cavity also concentrates stress disproportionately on the mantle.
A: Harder rock typically requires a more robust profile with a smaller nip angle to prevent slippage. Highly abrasive rock also demands higher manganese alloys to ensure the engineered geometry holds its shape as long as possible under continuous stress.
