How Can Crusher Liner Thickness Be Monitored During Operation?

Views: 0     Author: Site Editor     Publish Time: 2026-08-16      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Balancing maximum liner utilization against the catastrophic risk of backing material damage represents a core operational dilemma. Every hour of mineral processing matters heavily to your bottom line. However, pushing your crushing equipment to its extreme limits often invites severe structural risks. Relying solely on scheduled shutdowns for visual inspections creates significant blind spots for maintenance teams. These traditional, reactive approaches frequently lead to premature changeouts. This practice wastes valuable capital expenditure unnecessarily. Alternatively, blind operation causes sudden, unexpected failures. These failures trigger massive unplanned downtime across your entire plant. You need a proactive way to safeguard your heavy assets continuously. In this comprehensive guide, we will establish a reliable, data-driven monitoring framework. You will learn how to track wear rates accurately while your equipment is actively running. By blending proxy operational metrics with modern sensor technologies, you can easily transition your facility from blind guesswork to highly precise, predictive maintenance.

Key Takeaways

  • Continuous monitoring relies primarily on indirect operational indicators (motor power draw, vibration, and CSS adjustments) rather than direct physical measurement while crushing.

  • Advanced solutions (like 3D laser scanning and ultrasonic tools) offer high precision but require short idle windows or empty chambers, supplementing continuous operational data.

  • Monitoring accuracy is heavily dependent on establishing accurate baseline measurements immediately after installing new crusher liners.

  • Different wear parts—from cone mantles to a Jaw Crusher Side Liner—require distinct monitoring strategies based on their specific wear patterns and load exposures.

The Business Case for Active Wear Monitoring

Establishing a solid operational baseline is a critical first step. As internal parts degrade, you will observe a direct drop in material throughput. Poor particle shape also becomes highly evident on your downstream conveyor belts. Flaky material severely reduces your downstream grinding efficiency. Active monitoring helps you catch these mechanical inefficiencies very early. You must carefully evaluate routine maintenance costs against severe operational risks. Replacing your crusher liners at only 60% wear creates massive hidden financial losses. You are essentially throwing away perfectly usable manganese steel.

However, waiting too long invites total disaster on the plant floor. Epoxy backing failure leads directly to dangerous steel-on-steel contact. A breached liner can easily destroy the entire crusher main shaft. Repairing a damaged crusher frame often takes several weeks. Achieving a successful monitoring strategy shifts your operations completely. You move away from reactive, time-based maintenance models. Instead, you adopt predictive, tonnage-based changeout scheduling. This smart transition protects both your daily production targets and your heavy machinery.

To prove the business case internally, define clear success criteria. You should target the following fundamental milestones:

  1. Establish a clear baseline metric for initial throughput and particle shape immediately after installation.

  2. Quantify the exact financial gap between early replacement waste and catastrophic equipment failure.

  3. Transition your team completely from reactive maintenance to data-driven predictive scheduling.

  4. Reduce unnecessary inspection shutdowns by relying strictly on continuous digital oversight.

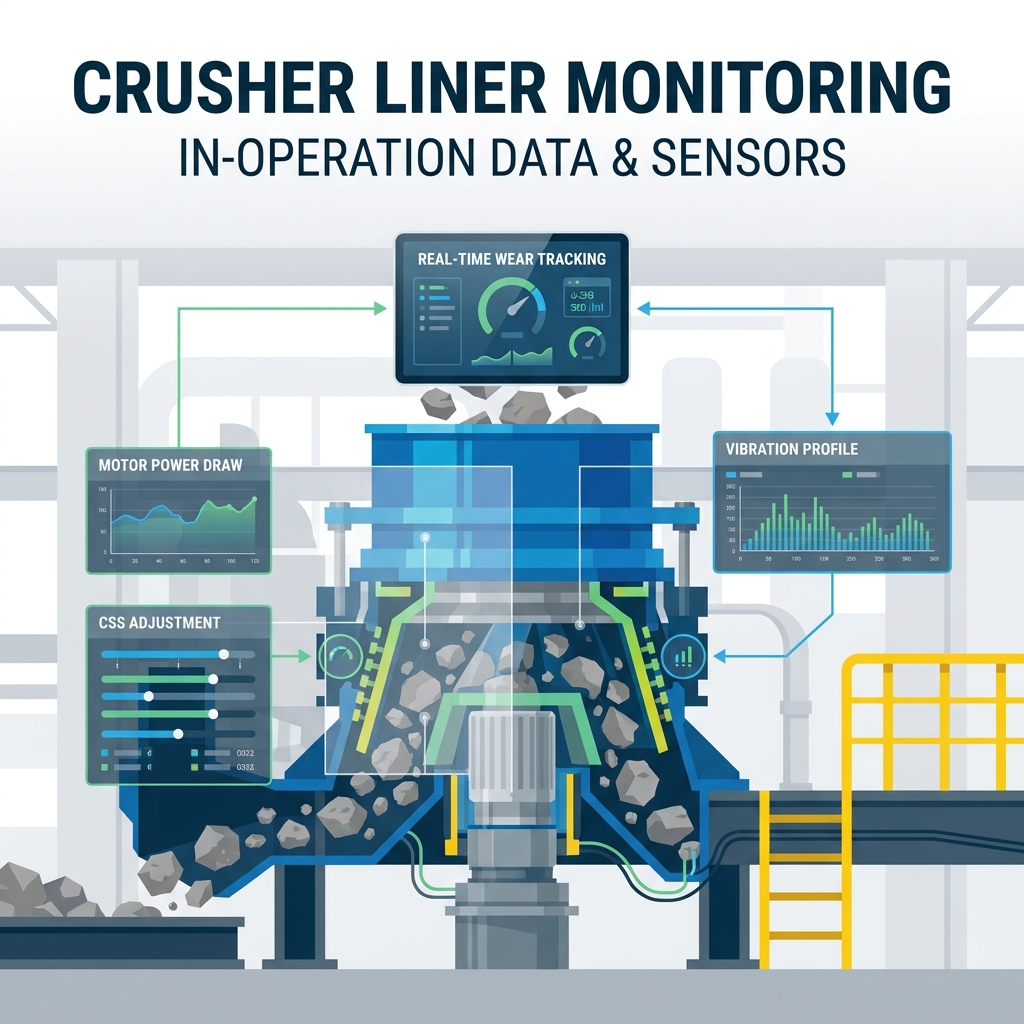

Proxy Metrics for Continuous "In-Operation" Monitoring

Direct physical measurement is simply impossible while rocks are actively being crushed. Therefore, operators must rely heavily on proxy data. We use indirect operational metrics to understand internal cavity conditions.

Motor Power Draw and Current Spikes

Start by tracking your baseline power consumption carefully. New components maintain a highly efficient crushing cavity. However, as the cavity profile changes, operational dynamics shift. Motor power draw typically fluctuates or increases steadily over time. The machine simply works harder to maintain the same reduction ratio. Watching these current spikes gives you immediate, real-time wear feedback. If power draw increases sharply without a feed change, investigate immediately. This often signals a critical loss of cavity efficiency.

Closed Side Setting (CSS) Adjustment Tracking

Modern crushers utilize automated Closed Side Setting (CSS) adjustments. You should log the frequency and distance of these mechanical movements. Operators require them to maintain a consistent end-product size. Raising the mantle compensates for the gap widening caused by wear. You can calculate the total CSS reduction over a specific period. This calculation serves as a highly accurate mathematical proxy. It clearly indicates the total loss of internal metal thickness. Logging CSS daily prevents sudden operational surprises.

Vibration and Acoustic Profiling

Establish a firm vibration baseline for a newly lined chamber. Sound and vibration signatures change significantly as components degrade rapidly. You must detect anomalies quickly during standard machine operation. Rattling noises or distinct acoustic shifts act as severe warning signs. They often indicate uneven wear patterns or localized metal thinning. Sometimes they even point to loose backing material behind the steel. Capturing these acoustic profiles prevents catastrophic structural damage before it happens.

Monitoring Metric

Early Life Stage

Mid Life Stage

End of Life Stage

Motor Power Draw

Stable, matches initial baseline

Gradual upward trend observed

Erratic spikes, very high average

CSS Adjustments

Infrequent, minor tweaks required

Consistent weekly gap closure

Daily aggressive reduction needed

Acoustic Profile

Muffled, uniform crushing sound

Slight pitch elevation noted

Distinct rattling or metallic clanking

Advanced Diagnostic Technologies (Minimal-Interruption Methods)

Sometimes operational proxy metrics need further field validation. We can use advanced diagnostic tools requiring minimal plant interruption. These technologies provide precise structural data safely.

Wear-Tracking Software and Tonnage Modeling

Use your plant SCADA data as a predictive operational weapon. You can cross-reference total tons crushed against daily feed hardness. Compare these specific inputs against known wear curves. Certain manganese alloys follow highly predictable physical degradation paths. Software models help you visualize this timeline accurately on screen. You can predict exact failure dates based on historical tonnage data. This smart approach requires minimal human intervention once configured properly.

3D Laser Scanning and Profiling

Deploy specialized optical tools like 3D cavity mapping technologies. You lower a scanning probe down the feed opening carefully. You only need brief feed-stop intervals to use them effectively. No physical dismantling is ever required for this process. You can compare real-time volumetric scans directly against original CAD profiles. This reveals the exact topographical wear pattern instantly. 3D scanning eliminates all human bias from your routine maintenance inspections. Operators can clearly see localized gouging.

Ultrasonic Thickness Gauging

Utilize specialized probes for precise ultrasonic thickness gauging. You can apply them on accessible external or rear measuring points. Some operations use them exclusively during short idle periods. They measure remaining steel thickness accurately without removing any heavy parts. Ultrasonic tools work best when you have clean contact surfaces. You must clean the measurement area thoroughly before taking a reading. Dust blocks ultrasonic waves severely.

Implementation Realities and Operational Risks

Theoretical frameworks do not always perfectly match reality on site. You will face several harsh implementation challenges daily. The false baseline risk represents a major pitfall for maintenance crews. You must properly calibrate monitoring software immediately after a changeout. Failing to log initial CSS positions renders subsequent data entirely useless. Your software will incorrectly calculate wear against a phantom dimension.

Environmental limitations also impact sensor reliability significantly. Heavy dust, extreme vibration, and flying debris act as harsh operational barriers. They can quickly blind optical sensors or degrade acoustic monitoring equipment. You must install ruggedized enclosures to protect your digital asset investments. Variable feed conditions complicate your daily data analysis further. Sudden changes in ore hardness or moisture easily skew power-draw metrics. A sudden influx of wet, sticky clay increases amperage rapidly. This creates false wear alerts on your dashboard.

Specific component shapes present unique physical tracking challenges. Consider the extreme difficulty of tracking localized wear pockets. Monitoring a stationary Jaw Crusher Side Liner is notoriously difficult. It sits vertically and handles highly abrasive sliding wear. It suffers from severe localized gouging near the bottom discharge zone. This contrasts sharply against the highly symmetrical wear of a cone mantle.

Here are common mistakes operators make when managing these implementation risks:

  • Forgetting to calibrate the SCADA software immediately after replacing heavy wear components.

  • Ignoring sudden spikes in ore moisture, which artificially inflate power draw readings.

  • Assuming standard acoustic sensors will survive unprotected in high-vibration crushing zones.

  • Treating asymmetrical jaw wear data exactly the same as symmetrical cone wear data.

Shortlisting a Monitoring Strategy: A Decision Framework

We need a structured way to decide on the best monitoring approach. The right strategy depends entirely on your facility's current technological maturity. You cannot force high-end tech into a low-tech plant environment.

Low-maturity operations: Implement rigorous daily logging of CSS adjustments, motor amperage, and production tonnage. Create a basic wear curve spreadsheet manually. Train your floor operators to listen carefully for acoustic anomalies. This basic manual approach costs nothing but strict operational discipline.

Mid-maturity operations: Integrate Programmable Logic Controller (PLC) data directly into your central systems. Automatically plot CSS tracking against daily production tonnage. Establish automated predictive alerts when components reach 80% of their historical life. This successfully reduces reliance on flawed manual human memory.

High-maturity operations: Invest heavily in 3D cavity profiling tools and integrated wear-monitoring software. Map the exact surface topography safely during scheduled maintenance windows. Cross-reference this highly accurate visual data against your continuous proxy metrics. This creates a highly accurate digital twin of your crushing cavity.

Operational Maturity

Primary Tools Used

Data Processing Method

Key Operational Advantage

Low-Maturity

Logbooks, basic amp meters

Manual spreadsheet entry

Zero upfront capital equipment cost

Mid-Maturity

PLC integration, automated CSS

Automated dashboard trending

Removes human logging errors completely

High-Maturity

3D laser scanners, Ultrasonic

Digital twin cross-referencing

Pinpoint predictive changeout accuracy

Take immediate next steps to improve your process. Audit your current SCADA capabilities today. Determine if CSS and power draw can be trended automatically right now. Do this before investing any capital in expensive external profiling hardware.

Conclusion

Effective in-operation monitoring bridges the massive gap between running blindly and stopping constantly. You no longer have to guess when a heavy part will fail. You also avoid halting production just to take a look inside. A hybrid approach yields the absolute highest return on investment and safety margins. Use operational proxy data like power draw and CSS for continuous tracking. Then, validate those specific trends using quick technological scans.

Focus on these key action steps moving forward:

  • Audit your existing PLC data to capture historical power draw and CSS trends.

  • Establish rigid protocols for calibrating baselines immediately after installing new wear parts.

  • Train your maintenance personnel to differentiate between rock-hardness spikes and actual metal wear.

  • Schedule 3D cavity scans only when you reach the final 30% of expected component life.

FAQ

Q: Can you physically measure crusher liner thickness while the machine is crushing?

A: No. Direct physical measurement requires an empty chamber and halted feed. "In-operation" monitoring relies on proxy data like CSS reduction and motor load.

Q: How do wear monitoring techniques differ for a Jaw Crusher Side Liner versus a Cone Crusher Mantle?

A: Cone crushers allow for automated CSS tracking which serves as a global wear indicator. Jaw side liners experience localized gouging and require either visual inspection, wear indicators (cast-in grooves), or ultrasonic testing during empty-chamber idling.

Q: How often should 3D laser profiling be conducted?

A: Typically reserved for the latter 30% of the liner's expected lifespan, conducted during routine maintenance shutdowns or planned feed interruptions to precisely plan the changeout date.

Q: What is the minimum safe thickness for most manganese crusher liners?

A: Varies by manufacturer and crusher type, but generally, operators aim to replace liners when 10mm to 15mm of wear metal remains above the backing material to prevent structural damage.
