Mill downtime is never cheap. One worn part can slow a full grinding line. Mill liners help prevent that problem. In this article, you will learn what mill liners are, how they work, what types exist, and how to choose the right liner for harsh grinding conditions.

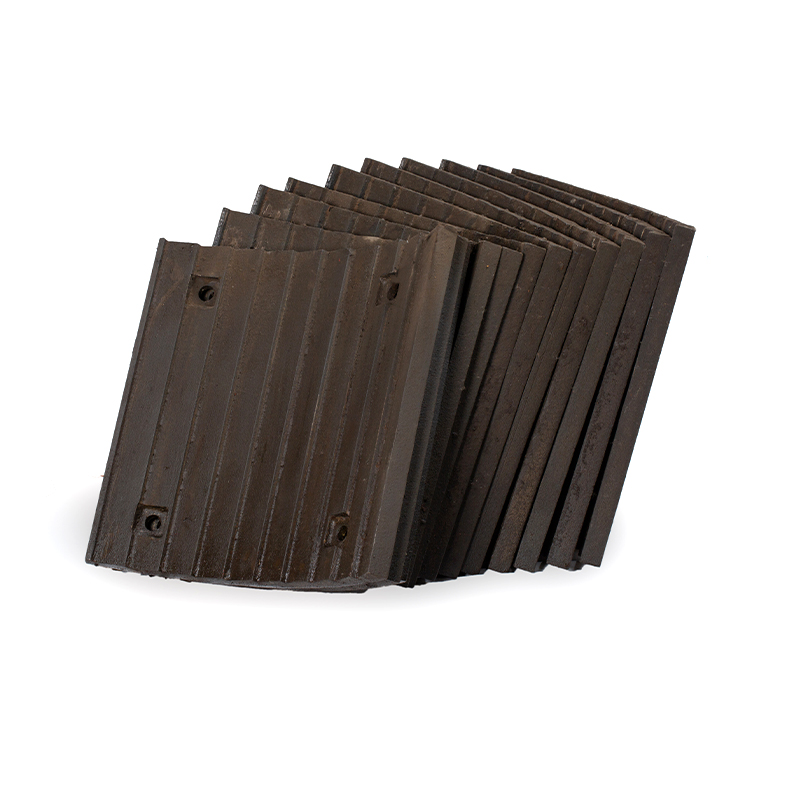

Mill liners are replaceable protective parts fixed inside grinding mills. They create a barrier between the mill shell and the grinding process. Without them, ore, grinding balls, and slurry would hit the mill body directly.
In mining, cement, and other heavy industries, grinding mills handle hard materials every day. The process creates strong impact and constant abrasion. Mill liners absorb much of this damage. They help the mill stay safe, stable, and productive.
Mill liners are installed on the inner surface of the mill. They can cover the cylinder, feed end, discharge end, manhole area, door frame, and other exposed zones. Their exact layout depends on the mill type and its internal structure.
A complete liner set often includes several shapes and sections. Each part must fit the mill accurately. Poor fit can cause bolt problems, uneven wear, vibration, or early liner failure.
The mill shell is expensive and difficult to repair. Mill liners protect it by taking the wear first. They resist impact from grinding media and reduce abrasion from processed material.
This protection helps avoid shell damage and long shutdowns. It also allows the plant to replace liners during planned maintenance instead of stopping production after sudden failure.
Mill liners do not just sit inside the mill. Their shape helps lift and guide grinding media. As the mill rotates, liner profiles affect how balls, ore, and slurry move.
A well-designed liner can improve material breakage. A poor design may let media slide too much or hit the wrong zone. That can waste energy and reduce grinding efficiency.
Mill liners affect maintenance cost, energy use, output stability, and replacement frequency. A good liner may cost more at purchase, yet it can lower the unit cost of production.
The goal is not simply to buy the hardest liner. The goal is to choose a liner that matches the mill, the material, and the maintenance plan.
Grinding mills create repeated impact. Balls, ore, and liner surfaces collide during rotation. Mill liners help absorb this force and protect the main equipment.
In smaller mills, impact may be moderate. In large mills, impact can be much stronger. This is why liner material and thickness must match the real working condition.
Abrasion happens when hard particles scrape the liner surface. This is common in mineral processing, cement grinding, and coal grinding. If the liner material is not suitable, wear can become fast and uneven.
Wear resistance depends on alloy composition, heat treatment, hardness, microstructure, and working environment. In high-wear applications, plants may consider high chromium alloy or alloy-composite solutions.
The liner profile affects the charge movement inside the mill. Some profiles lift grinding media higher. Others create more sliding or cascading movement.
This matters because different materials need different grinding actions. Coarse ore may need strong impact. Finer grinding may need more controlled abrasion. The liner helps shape that process.
A stable liner system helps the mill run more predictably. It can reduce sudden failures, improve grinding consistency, and support planned maintenance.
When liners wear unevenly, the mill may become noisy or unstable. Output may drop. Power draw may change. These signals often show that the liner system needs inspection.
Ball mill liners are used in ball mills for mineral processing, cement, coal, and other grinding applications. They protect the cylinder and help grinding balls move in the correct pattern.
These liners need strong wear resistance. They also need enough toughness to handle repeated impact. Common options include Mn-Cr alloy steel, high manganese alloy, and other customized alloy materials.
SAG mill liners work in semi-autogenous grinding mills. These mills handle larger feed and stronger impact. The liners must resist heavy loads from both ore and grinding media.
SAG mill liners may use high manganese alloy, high chromium alloy, or rubber-metal composite designs. Composite liners can help reduce weight while keeping useful wear performance.
AG mill liners are used in autogenous mills. In this process, the ore itself acts as part of the grinding media. The liner must handle impact and abrasion from large ore pieces.
These liners often need custom design. The ore type, mill speed, and feed size can change liner wear patterns.
Vertical grinder liners are used in vertical grinding equipment. They work in a different motion environment than ball mills or SAG mills. Their job is still the same: protect the machine and help support stable grinding.
They often need high wear resistance because material moves across the grinding surface under pressure.
Liner Type | Main Use | Key Requirement |
Ball mill liners | Ball mills in mining, cement, and industrial grinding | Wear resistance and stable fit |
SAG mill liners | Large mining mills | Impact strength and durability |
AG mill liners | Autogenous grinding | Custom profile and toughness |
Vertical grinder liners | Vertical grinding systems | Surface wear resistance |
High manganese alloy liners are known for toughness. They can work well where impact is strong. Under proper working conditions, the surface can harden during use.
This material is often used in mining and cement grinding. It is useful when liners must handle impact without cracking too easily.
Mn-Cr alloy steel is a common choice for mill liners. It offers a balance of wear resistance, toughness, and cost. It is often used when the mill size, impact load, and abrasion level are not extreme.
For many grinding plants, this material can be a practical option. It may help lower unit cost when matched correctly to the mill.
High chromium alloy liners are often used when abrasive wear is severe. They can provide stronger wear resistance in suitable conditions. For large mills or highly abrasive ore, chromium alloy mining liners may be a better choice than standard options.
However, material selection must be careful. High hardness alone does not solve every problem. If impact is too strong, a very hard liner may face cracking risk.
Rubber liners and rubber-metal composite liners can help reduce liner weight. They may also lower noise and make handling easier in some applications.
Composite liners combine different material strengths. For example, metal can support wear resistance, while rubber can help absorb impact. This option can be useful in selected SAG mill conditions.
Thicker liners may last longer. But they also take up more internal space. This can reduce the effective grinding volume of the mill.
A thinner liner may improve capacity, yet it may wear out too soon. The right choice depends on the maintenance cycle and target production cost.
The lifter profile controls how grinding media moves. A high lifter may raise media higher before impact. A lower profile may create more sliding action.
The correct profile depends on the grinding goal. Coarse grinding needs strong breakage. Fine grinding needs more controlled movement.
Different zones inside the mill face different wear. The feed end may face strong incoming impact. The discharge end may face slurry flow and material movement.
This is why one liner set may include several shapes. Each section should match its wear position.
Many plants use existing mills for years. Wear patterns may become clear over time. A custom liner design can adjust thickness, shape, or alloy choice based on real site data.
This can reduce liner cost, improve grinding efficiency, or extend service life. It is often better than replacing old liners with the same design without review.
The first step is simple. Identify the mill type. A ball mill, SAG mill, AG mill, and vertical grinder do not need the same liner design.
Mill diameter also matters. Larger mills create higher impact. They may require stronger materials or special liner profiles.
Ore hardness and abrasiveness affect liner wear. A soft material may not need the same liner as hard metal ore. Cement clinker, coal, and mineral ore can create different wear patterns.
If the material is highly abrasive, high chromium alloy or ceramic-composite options may be considered. If impact is severe, toughness becomes more important.
Longer liner life is useful, but it should not reduce output too much. Very thick liners can reduce mill volume and raise energy demand.
The best liner should last through the planned maintenance cycle and still support efficient grinding. This balance is more important than maximum thickness.
Mill liners must fit precisely. Accurate drawings help confirm size, shape, bolt holes, and installation position.
If drawings are missing, on-site measurement may be needed. This step reduces the risk of poor fit, delayed installation, and unexpected modification work.
The clearest sign is visible damage. Cracks, broken liner plates, loose bolts, or deep wear marks should not be ignored.
A damaged liner can expose the shell to wear. It may also create safety risks during operation.
If the mill needs more energy for the same output, the liner may be worn. Worn profiles can no longer lift grinding media correctly.
This can reduce breakage efficiency. It can also increase recirculating load or reduce product quality.
Abnormal noise or vibration may indicate loose liners, broken parts, or uneven wear. The mill should be inspected before the issue grows.
Operators should compare new signals against normal running conditions. Small changes can warn of larger problems.
Some plants replace liners based on fixed maintenance plans. This method can reduce sudden downtime.
However, replacement timing should still consider real wear data. A liner may wear faster if ore conditions change.
Zhongrui provides mill liners for demanding grinding work. Its products help protect mill shells, improve wear control, and support stable operation in mining and cement plants. By offering alloy steel, high manganese alloy, high chromium alloy, and composite options, Zhongrui helps users match liner design to real site conditions, reduce downtime, and improve long-term grinding value.
A: Mill liners are protective parts inside grinding mills. They protect the shell and guide grinding media.
A: Mill liners reduce wear, protect equipment, and help keep grinding output stable.
A: Match mill liners to mill type, ore hardness, impact load, and maintenance goals.
A: They can be better for severe abrasion, but impact level must be checked.
A: Replace them when wear, cracks, vibration, or output loss becomes clear.
A: Yes. Better fit and longer life can reduce downtime and unit production cost.
