Product Introduction
>Product Introduction

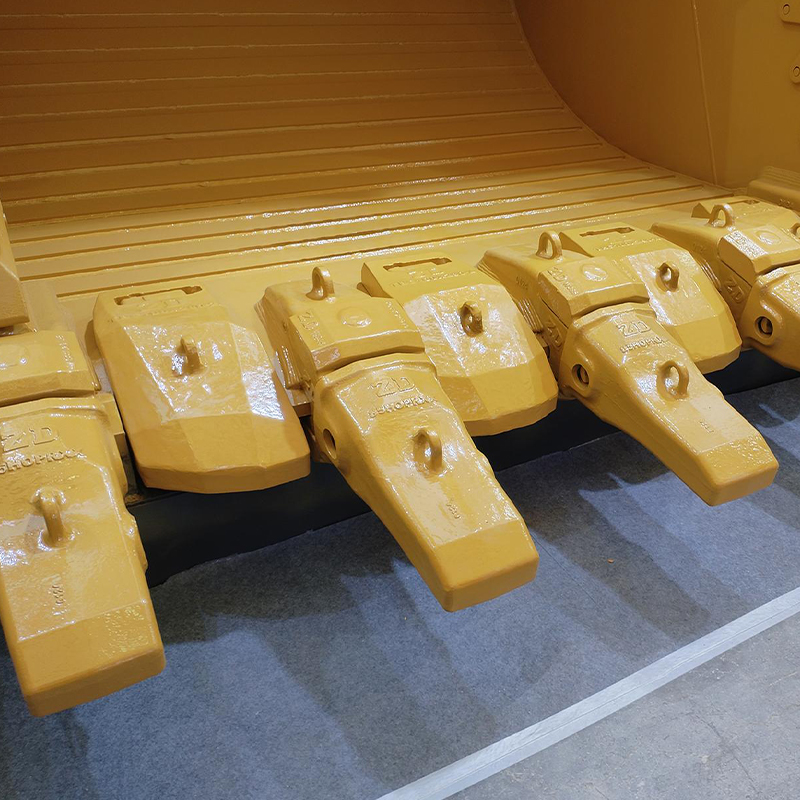

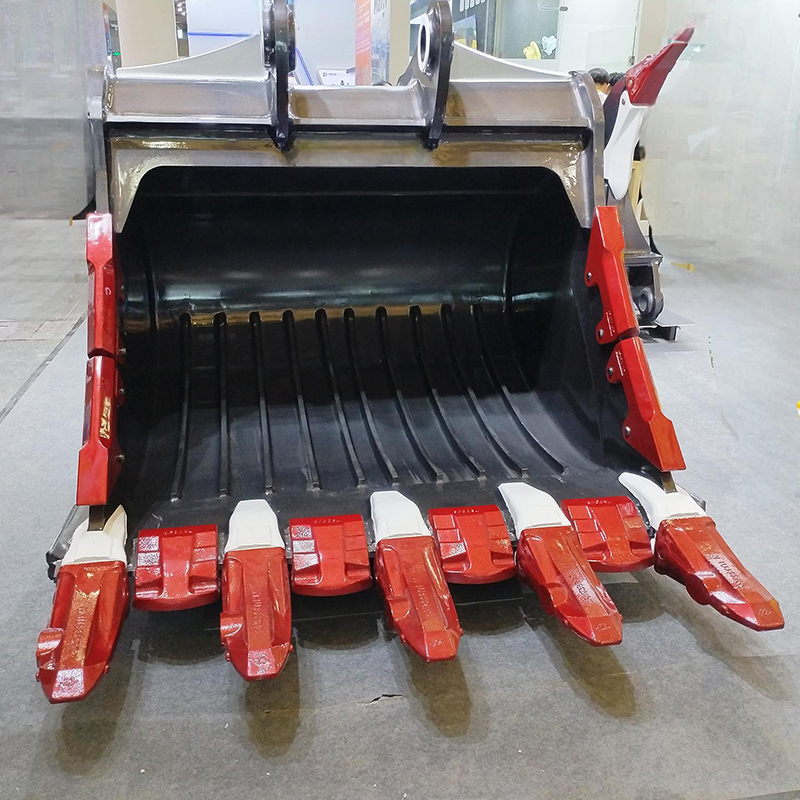

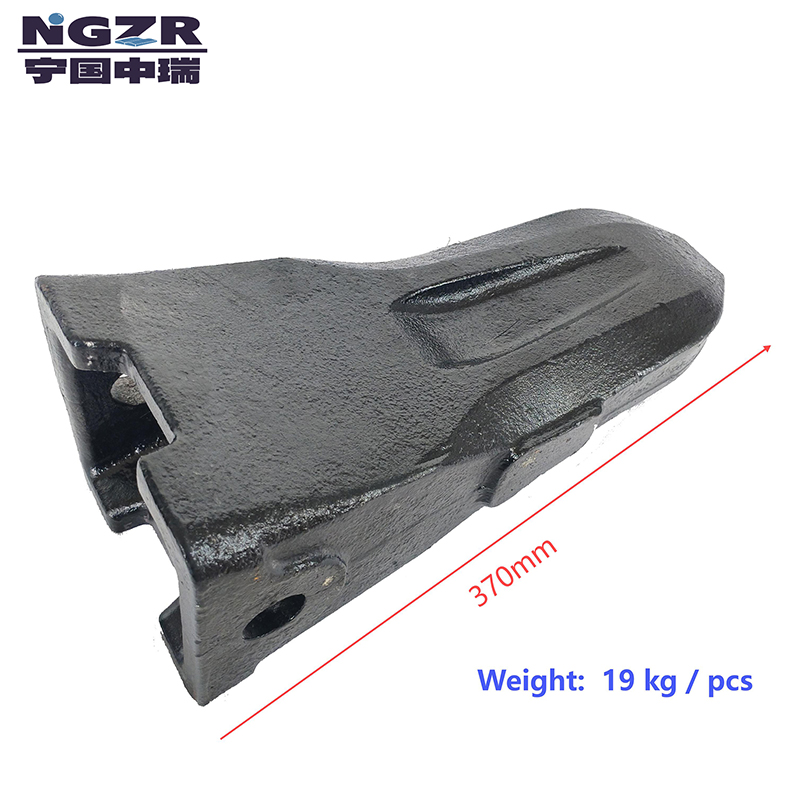

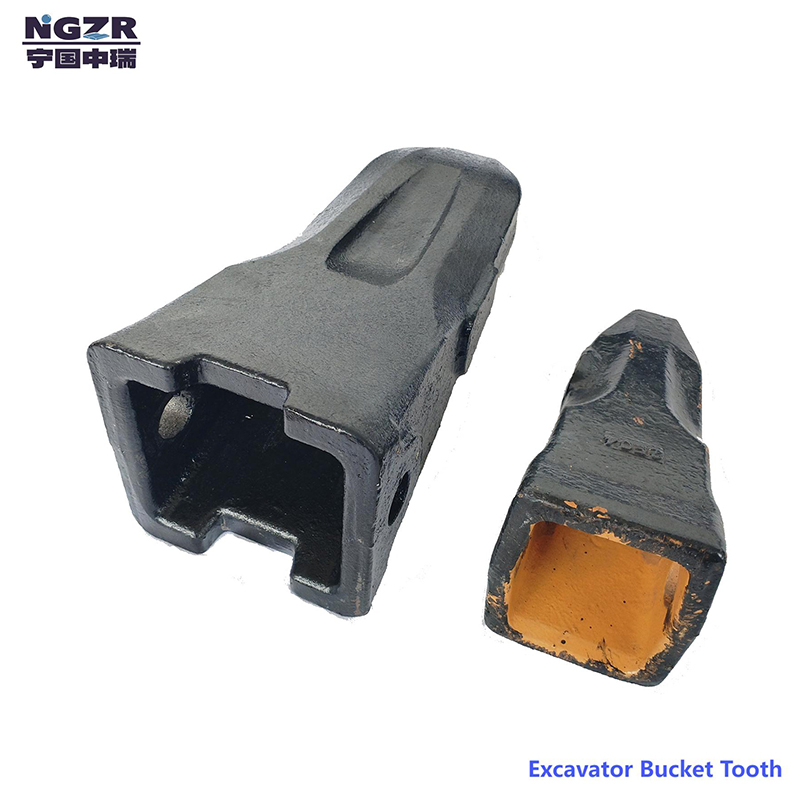

Excavator bucket teeth are important components on excavators, similar to human teeth and also vulnerable parts. They are a combination of tooth seat and tooth tip, connected by a pin shaft. Due to the wear and failure of the bucket teeth, only the tooth tips need to be replaced.
The process of making bucket teeth includes sand casting, forging , and precision casting. Sand casting is The lowest cost and lower level of craftsmanship and tooth quality compared to precision casting and forging. Forging : with the higher cost and the better craftsmanship and tooth quality. Precision casting: Moderate cost but very strict requirements for raw materials, and relatively high level of craftsmanship. Some precision cast bucket teeth have even exceeded the wear resistance and quality of forged bucket teeth due to ingredient reasons. Precision casting of bucket teeth is the mainstream manufacturing process for bucket teeth in the market.
Bucket tooth is a consumable spare part of Excavating machinery, be used to Creak & break the minerals & rocks or other material. this bucket tooths should have longer life with high hardness, lower wear-rate & breakage rate, so used high Manganese alloy steel or high Chromium alloy steel to make, casting by advanced automatic casting line, finished product with special heat-treatment, will improve product quality and useful life !

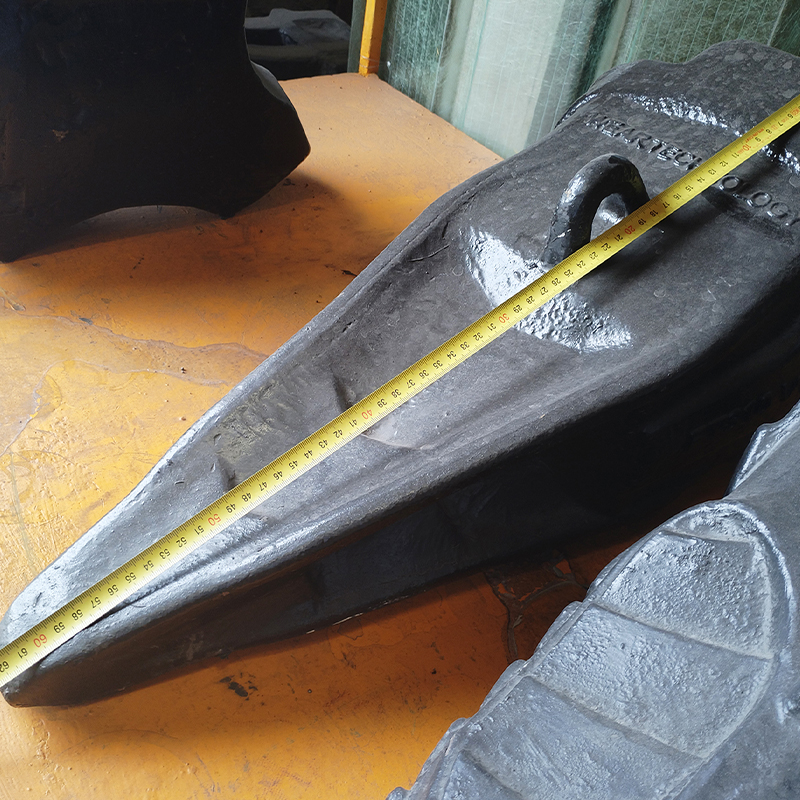

1. Bucket Teeth

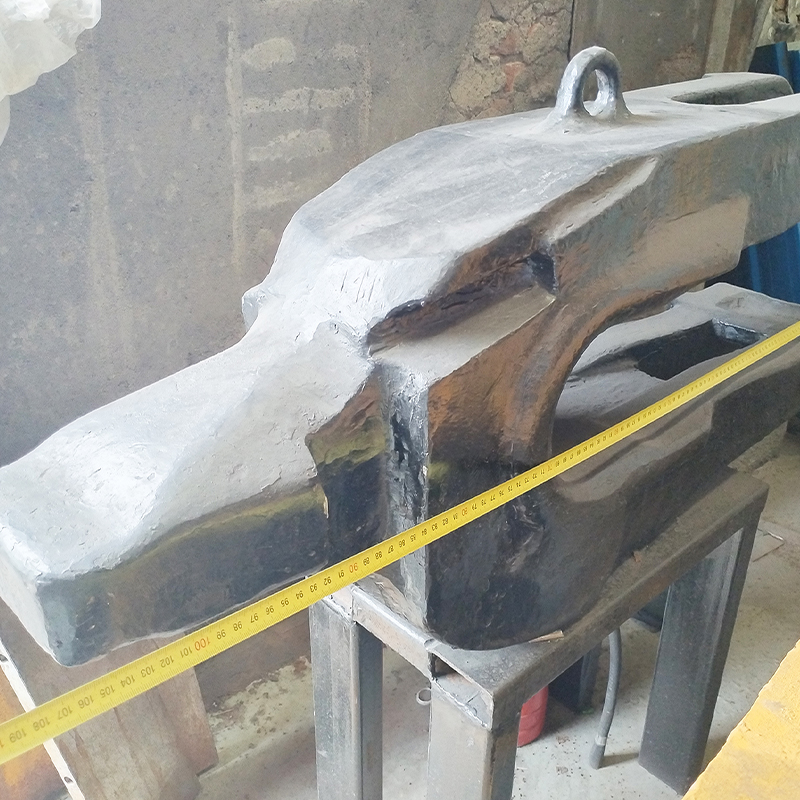

2. Bucket Teeth Adapters

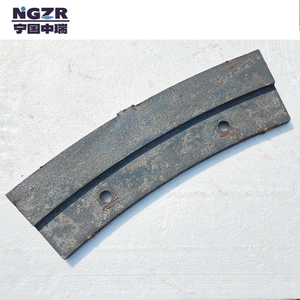

3. Bucket Guard board
>Product Advantage
Relatively stable quality
High Mnganese-Chromium alloy steel casting wear-parts have been used with a longer usage time history than other kind materials.
NGZR have more than 10 years experience of R&D / Manufacutring / After-sales srevice for High Mn & High Cr casting wear parts (such as high Chrome casting gridning media and high Mn-Cr alloy cast mill liner & crusher wear-parts ) in Mining and aggregate Indusries.
Lower usage cost
Mn-Cr alloy steel cast waer part (Buchet Teeth & Adapters & Guard board) have long usage life with stable quality.
NGZR have large production capacity with Advanced Lost foam process full Automatic precision casting line and Resin-sand Wooden mould manual casting production line, we can provide more competive price products to all customers. So customer will get lower purchase cost than before.
Customized alloy Steel composition
NGZR foundry was able to match customer needs to readjust the Chemical Composition of alloy steel content (Mn /Cr) , or increased other special metallic element (Si /Mo /Cu /Ni etc), through special heat-treatment processing, can help this casting Excavator bucket wear-parts have special Mechanical performance, to follow different customer’s different working conditions.
Customized drawing size and shape
NGZR foundry can follow customer’s drawing size of exist Excavator bucket wear-parts to customized . Also we can revised the exist wear parts shape / thickness and resistant quality to help customer get lower wear-parts cost and higher production efficiency.
Door to door measure & Installation Guide
If customer can’t provide drawing of existing Excavator bucket wear-parts, NGZR will arrange our service engineer come to measuring product drawing size with free of charge.
If customer required, NGZR provide door to door installation guide serivce with paid.
Technical Parameters
>Technical Parameters
| #1 Alloy Chemical Composition: | |||||||||
ITEM | C | Si | Mn | P | S | Cr | Mo | Ni | Cu |
Mn13Cr2 | 1.05-1.35 | 0.3-0.9 | 11-14 | ≤0.06 | ≤0.04 | 1.5-2.5 | -- | -- | -- |
Mn13Cr2Mo | 1.05-1.35 | 0.3-0.9 | 11-14 | ≤0.06 | ≤0.04 | 0.4-1.2 | 0.4-1.2 | -- | -- |
Mn18Cr2 | 1.05-1.35 | 0.3-0.9 | 16-19 | ≤0.06 | ≤0.04 | 1.5-2.5 | -- | -- | -- |
Mn22Cr2 | 1.05-1.35 | 0.3-0.9 | 20-22 | ≤0.06 | ≤0.04 | 1.5-2.5 | -- | -- | -- |
Cr26Ni5 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.06 | ≤0.04 | 24-28 | ≤0.50 | 4-6 | -- |
Cr26Ni12 | 0.2-0.5 | ≤0.20 | ≤0.20 | ≤0.06 | ≤0.04 | 24-28 | ≤0.50 | 11-14 | -- |
Cr25Ni20Mo | 0.35-0.45 | ≤0.20 | ≤0.20 | ≤0.06 | ≤0.04 | 23-27 | 1.1-1.4 | 19-22 | -- |
Cr15Mo2 | 2-2.8 | ≤0.10 | 0.5-1.0 | ≤0.10 | ≤0.06 | 13-18 | 1.5-2.5 | 0-1.0 | 0-1.2 |
Cr20Mo2Cu | 2-3.0 | ≤0.10 | 0.5-1.0 | ≤0.10 | ≤0.06 | 18-22 | 1.5-2.5 | 0-1.0 | 0.8-1.2 |
Cr26Mn | 2-3.0 | ≤0.10 | 0.5-1.0 | ≤0.10 | ≤0.06 | 23-28 | 0-1.5 | 0-2.0 | 0.8-1.2 |
Remark: we can make any other type of alloy materials for customized. | |||||||||
| #2 Product Physical Technical: | |||||
ITEM | Yield strength Yp0.2 / MPa | Tensile Strength Rm / MPa | Impact absorption KU2 /J | Hardness HBW | Micro -structure |
Mn13Cr2 | ≥ 390 | ≥ 735 | ≥ 96 | ≤ 300 | A + C |
Mn13Cr2Mo | ≥ 390 | ≥ 735 | ≥ 96 | ≤ 300 | A + C |
Mn13Cr2Ni3 | ≥ 370 | ≥ 705 | ≥ 118 | ≤ 300 | A + C |
Mn18Cr2 | ≥ 390 | ≥ 735 | ≥ 96 | ≤ 300 | A + C |
Cr26Ni5 | ɑ ɓ(MPa) 590 | A + F | |||
Cr26Ni12 | ɑ ɓ(MPa) 490 | A + F | |||
Cr25Ni20Mo | ɑ ɓ(MPa) 490 | A + F | |||
Cr15Mo2 | HRC ≥ 53 | M+ A + C | |||
Cr20Mo2Cu | HRC ≥ 58 | M+ A + C | |||
Cr26Mn | HRC ≥ 55 | M+ A + C | |||
M= Martensite ; C= Carbide ; A= Austenitic ; F= Ferritic ; | |||||
Remark: we can make any other special mechanical properties for customized | |||||
Product Uses
>Product Application
Widely used in mining industry, Quarrying & Aggregate, metallurgical industry, construction industry, chemical industry and silicate industry for breaking hard and medium hard ore and rock, such as iron ore, limestone, copper ore, sandstone, quartz and so on.
>Product design & uses
How to choose correct alloy material to reduce production cost?
1.Fit the existing bucket teeth to choose alloy material
The bucket teeth size become large, the alloy material should have more Strength and toughness, bucket teeth product should have high hardness & impact toughness & abrasion resistant, then product will be made of a new high-quality Cr-Mn alloy steel composite casting, its service life will be better than forged stell .
2.Fit the RCM to choose the liner thickness size
The RCM ( reliability-centered maintenance) time of bucket teethl become loner, the teeth thickness size should be increased. However, the teeth thickness size increased, the product total weight will enlarge, so their purchased cost will rised.
3.Design the better shape of Bucket teeth & Adapters
The better shape of Excavator bucket tooth & Adapters will help Excavator have more effective working, increased the production capacity and quality!
NGZR can help customer to Research & Develop the bucket tooth & Adapters shape for existing excavator machiery.
Video
>Product Processing Video
FAQ
>FAQ
How to get a Quotation ?
Please send your excavator bucket teeth & Adapters details (Machinery brand /specifications / product drawing ) and purchase quantity to us, we will send quotation sheet to you by E-mail within 3 working days .
How to place an sample order if we have not wear-part drawing ?
Please contact with us, NGZR will arrange a Service Engineer coantact with you, then we will draw the dimensions drawing and send to you approved. After you approved the drawing, we can confrim the sample order and arrange to produce.
What is your MOQ ?
For the excavator bucket teeth & Adapters, MOQ is 1000 kg per shipment.
What is your order Lead-time ?
The order lead-time is 30-60 days after get deposit;
What is your payment term ?
1. 30% T/T in advance, balance T/T before shipment ;
2. O/A 30- 180 days;
What is your price term ?
We can do price term as below:
#1 EXW factory, including VAT tax;
#2 FOB Shanghai / Ningbo Port;
#3 CIF Port of delivery;
#4 DAP place of delivery;
Do you provide the Installation Service?
Yes, we provide the Installation Service，we can arrange a Service Engineer team to your Excavator work location to install, but this service need you pay all charge of this instal service..
And also we provide the Installation Guide by video / phone with free (didn’t go to your workshop).
Do you provide the guarantee of useful life time?
We can guarantee the time of hammer crusher useful life and mark on contract.
