When it comes to material size reduction in industrial applications, crushers play a critical role. Two commonly used types of crushers in the industry are cone crushers and hammer crushers. While both are effective tools for breaking down materials, they differ significantly in their mechanisms, materials processed, and ideal applications. In this article, we will explore the differences between a cone crusher and a hammer crusher, helping you understand which one is better suited for your needs.
A cone crusher is a type of compression crusher that uses a rotating cone inside a stationary outer cone to crush materials. As materials are fed into the crushing chamber, they are compressed between the cone and the bowl liner. The process is ideal for reducing the size of hard and abrasive materials.
In a cone crusher, the material is fed into the top of the machine and is crushed between the cone (mantle) and the fixed bowl liner. As the cone rotates, the material is crushed into smaller pieces due to the compressive force applied. The finer material then exits through the gap between the bowl liner and the mantle.
The key feature of a cone crusher is the consistent compression applied to materials, making it suitable for materials that require pressure to be effectively broken down. The cone crusher is well-suited for applications where uniform particle size is necessary.
Cone crushers are primarily designed for harder and abrasive materials. Some of the most common materials processed by cone crushers include:
Granite
Basalt
Hard ores (such as iron, copper, and gold)
Construction and demolition waste (in certain cases)
Cone crushers provide an efficient way to process hard materials and are commonly used in mining, quarrying, and aggregate production.

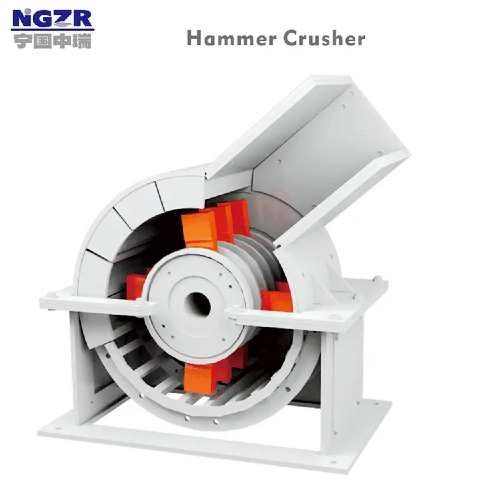

A hammer crusher, also known as a hammer mill, is a type of crusher that uses high-speed rotating hammers to crush materials. Unlike the cone crusher, which uses compression, the hammer crusher operates using impact force to break down materials.
In a hammer crusher, material is fed into a chamber where a series of hammers attached to a rotating rotor strike the material at high speeds. The force of the impact shatters the material, breaking it into smaller, more manageable pieces. The size of the output material is controlled by adjusting the gap between the hammers and the screen at the discharge end.
The hammer crusher is more versatile than the cone crusher, as it can process a wider range of materials, including softer and more brittle materials. This makes it particularly suitable for industries that require fast and efficient material breakdown.
Hammer crushers are ideal for softer and brittle materials that are easily broken by impact. Some of the materials processed by hammer crushers include:
Coal
Limestone
Gypsum
Salt
Construction waste (such as concrete, bricks, and asphalt)
The hammer crusher is typically used for materials that are less dense and easier to break down, which is why it is often employed in cement production, coal processing, and recycling applications.
Understanding the differences between a cone crusher and a hammer crusher can help you determine which one is better suited for your application. Below is a table summarizing the key distinctions between the two types of crushers:
Feature | Cone Crusher | Hammer Crusher |
Crushing Mechanism | Operates by compression between the cone and bowl liner. | Operates by impact from rotating hammers. |
Material Suitability | Best for hard, abrasive materials like granite, ores, and basalt. | Best for softer, brittle materials like coal, limestone, and gypsum. |
Size Reduction Process | Provides a consistent particle size distribution with fewer fines. | Produces more fines and irregular particle sizes. |
Efficiency and Throughput | Lower throughput for hard materials but more efficient in processing tough materials. | Higher throughput with faster processing of soft materials. |
Maintenance Cost | Higher maintenance cost due to wear on cones and liners. | Lower maintenance cost due to simpler design. |
Initial Investment | Higher initial cost due to robust construction and higher performance. | Lower initial cost, making it more affordable for small-scale operations. |
Applications | Ideal for mining and quarrying hard materials. | More suited for cement production, coal processing, and recycling. |
Cone Crusher:
Compression-based crushing mechanism where materials are squeezed between a rotating cone and a fixed bowl liner.
Suitable for hard, dense materials like granite and ores that require pressure for effective size reduction.
Hammer Crusher:
Impact-based crushing mechanism, where high-speed hammers strike the material, breaking it down.
Better for softer and brittle materials that can be easily shattered upon impact.
Cone Crusher:
Best suited for hard materials such as granite, basalt, and ore.
Ideal for producing uniform particle sizes in high-demand applications like mining and construction.
Hammer Crusher:
Suitable for softer materials like coal, limestone, and gypsum.
Used in applications where high throughput and fast processing are needed, such as in cement production and coal processing.
Cone Crusher:
Provides a more controlled reduction ratio, ensuring consistent particle sizes.
Ideal for applications where uniform output is critical.
Hammer Crusher:
Produces more fines and less uniform output, but this can be advantageous in certain industries that require smaller particles.
Cone Crusher:
While cone crushers tend to have lower throughput than hammer crushers, they are more efficient when processing hard materials.
High energy consumption can be a consideration in larger-scale operations.
Hammer Crusher:
Offers higher throughput and faster processing, making it perfect for soft materials.
More energy-efficient for certain applications, particularly when dealing with soft and medium-hard materials.
Cone crushers are known for their ability to achieve a high crushing ratio, reducing large materials into smaller, more manageable sizes. This high reduction ratio is ideal for processing hard materials like granite and ore.
Cone crushers are highly effective at processing abrasive materials, such as granite, basalt, and ores, where compressive force is necessary to achieve optimal size reduction.
Cone crushers are built with a more robust design, making them durable and capable of handling high-stress crushing applications. They provide long-term reliability when handling hard materials.
One of the primary benefits of hammer crushers is their high throughput capacity. Hammer crushers can process large volumes of material quickly, making them ideal for high-volume operations that need efficient material breakdown.
Hammer crushers can handle a wide range of materials, including coal, limestone, gypsum, and construction debris. Their versatility makes them a preferred choice for industries involved in coal processing, cement production, and recycling.
Hammer crushers are typically more cost-effective than cone crushers due to their simpler design and lower initial cost. This makes them an ideal choice for businesses with budget constraints or smaller-scale operations.
Choosing between a cone crusher and a hammer crusher depends on several factors, including material type, processing needs, and desired output size.
For mining operations that require hard material processing, such as breaking down ores or granite, cone crushers are the ideal choice. Their ability to handle dense, hard materials with consistent output makes them perfect for these environments.
In the cement industry, hammer crushers are more suitable for processing limestone, gypsum, and other soft to medium-hard materials. Likewise, in the coal industry, hammer crushers are often used for reducing the size of coal for power generation.
Hammer crushers excel at processing construction debris such as concrete, bricks, and asphalt. They are ideal for recycling applications where large amounts of construction waste need to be reduced to smaller, reusable aggregates.
Cone Crusher: Best for harder materials requiring consistent particle size, such as in mining and quarrying.
Hammer Crusher: Best for softer, brittle materials needing high throughput, such as in cement production or coal processing.
Both cone crushers and hammer crushers offer unique advantages, depending on the material processing needs of your operation. Cone crushers are perfect for processing hard, dense materials and producing uniform particle sizes, making them ideal for mining and quarrying applications. On the other hand, hammer crushers excel in high-volume processing of softer materials, providing fast and efficient size reduction, which is particularly beneficial for industries like cement and coal processing.
At Anhui Ningguo Zhongrui Wear-Resisting Material Co., Ltd., we specialize in offering high-quality cone crushers and hammer crushers that cater to a wide range of industrial applications. Whether you need to process tough materials or high volumes of softer substances, our expert team is ready to guide you in choosing the right equipment for your needs.
If you're looking for reliable and efficient crushing solutions, we invite you to contact us. Our crushers are designed to provide excellent performance, reduce operational costs, and enhance overall productivity. Reach out to us today to learn more about our products and how we can support your business needs.
What is the main difference between a cone crusher and a hammer crusher?
The main difference is that cone crushers use compressive force to crush hard materials, while hammer crushers use impact force to break softer materials.
Which crusher is better for mining operations?
Cone crushers are better suited for mining operations that process hard, abrasive materials like ores and granite.
Can a hammer crusher handle larger rocks?
Hammer crushers can handle large rocks, but they are more effective for softer materials. For harder rocks, cone crushers are typically more efficient.
Which crusher is more cost-effective?
Hammer crushers generally have lower initial costs compared to cone crushers, making them more affordable for smaller-scale operations.
Which crusher is more energy-efficient?
Cone crushers are more energy-efficient when processing hard materials, while hammer crushers are more energy-efficient for softer materials.
