Unplanned downtime and premature wear are the silent margin killers in aggregate and mining operations. When a facility relies on inferior components, it inevitably suffers. Selecting the wrong wear components does not just halt production temporarily. It creates a highly destructive cascade effect. You will see poor particle shape, increased recirculation loads, and spiked cost-per-ton metrics. Choosing the right crusher wear parts requires moving beyond the lowest initial price tag. Instead, plant managers must focus on long-term equipment efficiency and continuous throughput. This guide provides an evidence-based framework for making this critical choice. We will evaluate material science, cavity profiles, and operational metrics. You will learn how to match metallurgical properties directly to your specific feed material. By the end of this article, you will have a clear roadmap to maximize uptime, reduce maintenance frequency, and boost overall profitability across your crushing circuits.
Material dictates performance: High manganese isn't a universal cure. Soft but highly abrasive materials can wear down manganese before it has a chance to work-harden.
Shape affects efficiency: Tooth design and cavity profiles determine whether you effectively crush rock or simply generate wasteful recirculation.
Customization yields ROI: Conducting a formal "Wear Study" to thicken liners in high-impact zones is often more cost-effective than buying standard off-the-shelf parts.
Strategic replacement: Replacing mating parts (like a mantle and cone liner) simultaneously minimizes overall downtime, much like an F1 pit stop strategy.
Every effective crushing strategy begins at the source. You must evaluate your feed material objectively. Operators often guess the characteristics of their rock based on regional averages. This approach leads to costly mistakes. You need precise data to choose the best crusher wear part for your specific machine.
We must frame the selection decision around two physical properties: abrasiveness and crushability. Abrasiveness measures how quickly the rock erodes metal surfaces. Crushability defines how much energy the machine needs to fracture the rock. Do not rely on visual inspections alone. You should use professional laboratory tests. The Bond Work Index is the industry standard. It accurately measures rock crushability and helps predict energy consumption. This data forms the baseline for your material selection.
Understanding the Mohs hardness of your feed material simplifies the selection process. It allows you to anticipate the forces inside the crushing chamber.
Low-to-Medium Hardness (Limestone, Coal): These materials generate lower impact forces. They typically fall between 3 and 4 on the Mohs scale. Your primary focus here should be abrasion resistance rather than extreme impact toughness.
High Hardness (Granite, Quartzite): These materials rate between 6 and 8 on the scale. They deliver massive impact forces to the machine. You require high material toughness to prevent catastrophic shattering or cracking of the internal components.
We must address a common industry misconception. Many operators believe premium manganese steel is invincible. This is false. Manganese steel possesses a unique metallurgical property. It requires heavy, repeated impact to "work-harden." The massive compressive forces physically alter the surface structure. They make the outer layer incredibly hard while keeping the core tough.
However, this creates a paradox. Suppose your application involves highly abrasive but softer materials. High-silica sand is a perfect example. The material acts like sandpaper. It abrades the surface metal rapidly. The crusher wear part simply wears away before it receives enough impact to harden. In these counter-intuitive cases, standard alloys or high-chrome solutions consistently outperform expensive premium manganese.
Selecting the right metallurgy requires balancing initial costs against expected longevity. No single material works for every application. We must dissect the distinct advantages of each major formulation.
Manganese steel remains the undisputed champion for primary crushing applications. It offers an incredible balance of toughness and durability. However, the exact percentage of manganese drastically changes its behavior.
14% Manganese: This alloy exhibits slower work-hardening rates. However, it provides excellent initial yield strength. It resists cracking well under moderate impact.
18% Manganese: This is the versatile baseline for most crushing operations. You will find it in countless primary jaw and cone crushers worldwide. It balances hardening speed and core toughness effectively.
22–24% Ultra-High Manganese: We reserve this formulation for extreme-impact, highly abrasive applications. It handles massive, unyielding rock. You must be careful, though. Manufacturers must balance high manganese levels with proper carbon and alloy ratios. Poor blending leads to severe brittleness and early failure.

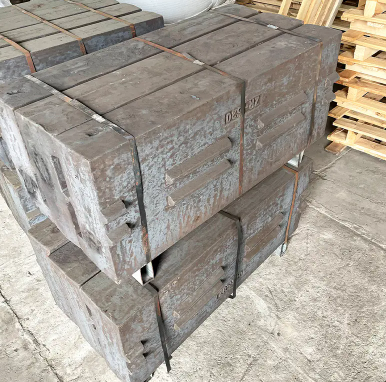

High-chrome cast iron dominates the secondary and tertiary crushing stages. It offers unmatched abrasion resistance. Operators heavily favor it for impact crusher blow bars. It easily outlasts manganese when processing softer, highly abrasive rocks like asphalt or limestone.
You must consider the associated risk factor. High-chrome iron is highly brittle. It cannot handle severe localized impacts. You must evaluate the risk of "tramp iron" entering the chamber. Tramp iron includes un-crushable metal like excavator teeth or rebar. If tramp iron hits a fast-moving high-chrome blow bar, the part will shatter instantly.
Standard materials sometimes require replacement too frequently. In these scenarios, you should explore advanced material upgrades. They carry a higher initial price but yield significant long-term savings.
Ceramic Inserts: Manufacturers embed hard ceramic matrices directly into the metal alloy. This combines the toughness of steel with the extreme wear resistance of ceramics.
Bimetallic Parts: These parts utilize a tough manganese base layer topped with a highly abrasion-resistant chrome wear layer. They offer the best of both worlds for demanding applications.
Review the table below to compare how different formulations perform across key metrics.
Material Type | Impact Toughness | Abrasion Resistance | Primary Application | Tramp Iron Risk |
|---|---|---|---|---|
14% Manganese | High | Moderate | Primary Jaw / Cone | Low Risk |
18% Manganese | Very High | Good | Standard Jaw / Cone | Low Risk |
24% Manganese | Extreme | Very Good | Extreme Hard Rock | Low Risk |
High-Chrome Iron | Low | Exceptional | Secondary Impactors | High Risk (Shatters) |
Many operators focus entirely on material science. They completely ignore the physical geometry of the components. This is a costly oversight. Shape is just as critical as material composition.
An incorrect profile design directly impacts machine efficiency. It leads to poor grip on the feed material. When rock slips inside the chamber, energy transforms into heat rather than fracturing the stone. This slippage accelerates surface wear drastically. Furthermore, poor cavity design increases your recirculation load. The machine fails to crush the rock to the target size on the first pass. It must process the same stone multiple times. This wastes electricity, fuel, and time.

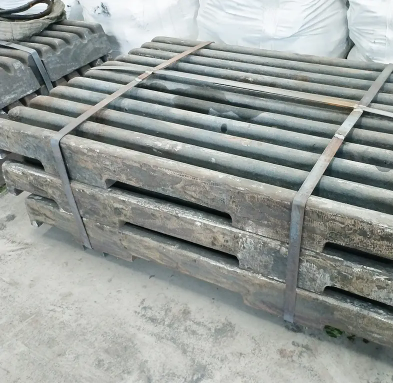

Jaw crushers utilize different tooth profiles to handle specific feed materials. Choosing the wrong profile guarantees poor performance.
Jaw Profile Summary Chart
Tooth Profile Name | Design Characteristics | Ideal Feed Material | Common Drawbacks |
|---|---|---|---|
Quarry Style | Flat, massive, heavy-duty ridges | Hard, massive rock (Granite) | Not suitable for sticky, clay-heavy feeds (causes packing) |
Corrugated Profile | Wavy peaks and valleys | Recycled concrete, standard aggregates | Slightly lower lifespan in ultra-hard rock |
Sharp / Toblerone | Sharp triangular points | Asphalt, softer secondary materials | Teeth wear down rapidly if used on high-abrasion stone |
The Quarry Style handles brutal, massive rock perfectly. However, if your feed contains heavy clay, this flat profile will pack tight and stop crushing. The Corrugated Profile grips irregular materials excellently. We highly recommend it for recycling operations processing concrete. The Sharp/Triangular Profile, often called the Toblerone style, creates extreme high-pressure points. It excels at slicing through softer materials like asphalt but breaks quickly under hard rock impact.
Vertical Shaft Impactors (VSI) highlight the importance of configuration. Swapping wear part setups can completely alter the machine's capabilities. You can shift from producing coarse aggregate to manufacturing fine, premium sand. A "Steel-on-Steel" configuration uses metal anvils to smash rock. It is highly efficient for lower-abrasion stone. Conversely, a "Rock-on-Rock" configuration uses a specialized rotor to build a lining of stone. The machine then throws incoming rock against this static stone lining. This protects the internal metal components when processing highly abrasive materials.
The aftermarket components market is saturated. Finding a reliable supplier requires strict vetting protocols. You must separate engineering partners from simple commodity brokers.
We must address a harsh commercial reality. Procurement teams often purchase components based on the lowest cost-per-pound. This is a severe logical fallacy. Cheaper aftermarket parts frequently lack consistent metallurgy. Manufacturers cut corners on heat treatment processes. This leads to unpredictable, catastrophic failures mid-shift. A part that costs 20% less upfront but fails twice as fast destroys your profitability. You must track the overall cost-per-ton produced to measure true component value.
You must demand verifiable certifications from your suppliers. Do not accept vague promises about quality. Ensure the supplier strictly adheres to ASTM A128 standards for manganese steel castings. This standard dictates precise chemical compositions and heat treatment protocols. Request recent performance test data. A reputable foundry will gladly provide hardness test results and Charpy V-notch impact strength data for their recent production batches.
Exceptional suppliers do more than sell metal. They analyze your worn components. Look for partners who conduct formal "Wear Studies." They will map the exact wear patterns on your discarded liners. Based on this data, a high-tier provider will engineer a custom solution. They will locally thicken the part in extreme wear zones. Crucially, they do this without altering the closed-side setting (CSS). They maintain your required throughput while drastically extending part life. This lowers your total operating cost significantly over time, despite a higher initial unit price.
Even the highest-quality components eventually wear out. How you manage their decline determines your operational efficiency. Reactive maintenance destroys production schedules. You need a proactive strategy.
Never wait for a part to crack before ordering a replacement. You must track specific operational red flags closely. Watch for these five signals:
Measurable drop in tons-per-hour (TPH): As profiles smooth out, slippage occurs. Production rates will slowly decline.
Inconsistent final product sizing: Worn cavities lose their calibration. You will notice oversized material escaping the chamber.
Surges in recirculation load: The screens will reject more material. The conveyor belts returning stone to the crusher will overload.
Increased motor amperage/power draw: The machine works harder to grip and fracture the rock. Electrical consumption spikes visibly.
Escalating cost-per-ton metrics: Factoring in energy, labor, and reduced output, your unit economics will deteriorate rapidly.
We strongly advocate for the "F1 Pit Stop" replacement strategy. You should replace mating components simultaneously. For example, always change cone crusher mantles and concave liners together. Sometimes, one part might have 15% life remaining. Changing them together feels wasteful initially. However, mating new parts ensures perfect cavity matching. It restores optimal crushing geometry immediately. More importantly, it drastically reduces your total annual downtime. Stopping the plant twice to change mismatched parts costs far more than discarding 15% of an old liner.
You can implement specific preventative routines to maximize component utility. For example, many jaw crushers feature reversible jaw plates. You should rotate or flip these plates halfway through their expected lifecycle. The lower section of the jaw always wears faster due to tighter clearances. Flipping the plate redistributes the wear evenly across the entire surface. This simple maintenance procedure can practically double the component's utility.
Sourcing the ideal components for your crushing circuit is fundamentally an engineering decision. It is never just a simple procurement task. You must carefully align material science with your specific feed characteristics. You must match profile geometry to your desired output. You must also establish rigorous operational goals and maintenance protocols. Focusing on the actual cost-per-ton rather than the upfront invoice price will transform your plant's profitability.
Your next steps are clear. First, baseline your current cost-per-ton metrics accurately. Second, photograph your existing worn parts to identify uneven or premature wear patterns. Finally, reach out to a certified supplier. Request a comprehensive wear study to validate your next purchase. By taking these actions, you protect your equipment, empower your crew, and secure your profit margins.
A: Lifespans vary wildly depending on rock abrasiveness, machine RPM, and feed size. Components may last from a few weeks to several months. You should track production metrics like TPH drop and product shape degradation rather than relying on a calendar. These performance indicators dictate the true replacement cycle.
A: No. While 22-24% manganese offers superior impact resistance, it requires massive crushing forces to work-harden effectively. If your rock is relatively soft or your machine runs under-choked, standard 14% or 18% manganese will perform much better and cost less.
A: Generally, no. Primary crushers deal with large, heavy feed and face unpredictable tramp iron events. High-chrome iron is exceptionally wear-resistant but highly brittle. The heavy impact of primary crushing will shatter chrome parts. It is much better suited for secondary and tertiary applications.
