Every earthmoving professional knows equipment parts degrade during heavy operation. However, treating the replacement of your excavator bucket teeth as a casual maintenance afterthought actively drains project profitability. They represent consumable wear parts acting as the absolute frontline defense for your machine.
Operating heavy machinery using blunt or structurally compromised attachments creates compounding mechanical problems. It directly impacts your fuel efficiency across every shift. It lengthens your cycle times significantly and forces undue stress onto complex machine hydraulics.
This guide provides a concrete, evidence-based diagnostic framework to evaluate these components objectively. Fleet managers and operators will learn how to identify exact replacement thresholds accurately. You will discover how to intervene early before progressive wear causes expensive, system-wide bucket damage.
The 30-40% Rule: Once a tooth loses 30% to 40% of its original length or crosses the 1/3 wear threshold, it actively costs more in fuel and lost productivity than the price of a replacement.
Listen and Feel: A "clicking" sound or noticeable bucket wobble indicates compromised pins and retainers, not just surface wear.
System-Wide Risk: Delaying a $400 wear part replacement can force a $10,000+ bucket rebuild if the adapter or shank becomes exposed to direct abrasion.
Condition-Dependent Lifespans: Replacement cycles vary wildly—from 60 hours in severe rock applications to 6 months in soft clay.
Operators often try squeezing a few extra days out of worn attachments. This approach looks like a cost saving on paper. In reality, it triggers a cascade of mechanical and financial penalties.
When attachments lose their sharp profile, structural penetration power drops instantly. The operator instinctively pushes the cab joysticks harder to compensate. They apply more engine throttle to force the machine into the cut. This extra force spikes internal hydraulic pressure beyond normal operating parameters. Boom cylinders must work overtime to push dull edges through compacted soil. This stress transfers directly down the machine frame into the undercarriage. Over several weeks, this chain reaction accelerates costly track and roller wear.
You must understand basic operator's math to maximize fleet profitability. A dull edge forces the engine to burn substantially more diesel per trenching cycle. Digging times stretch out longer than estimated. This daily cost of extra fuel burn quickly eclipses the baseline price of a new replacement set. Poor bite mechanics ruin efficiency. Investing in a brand-new set of excavator bucket teeth pays for itself rapidly through immediate fuel savings and restored productivity.
Your attachments protect a highly vulnerable area. Worn tips eventually expose the permanent bucket adapter to raw material abrasion. This represents a critical failure point. If an adapter wears down, you cannot simply pin a new tip onto it. Mechanics must cut off the damaged adapter, grind the surface, and weld a new one perfectly straight. Replacing weld-on adapters or repairing a deformed lip proves exponentially more expensive. It also causes severe operational downtime.
You cannot rely on casual visual guesses to maintain heavy equipment. Fleet managers must use objective, measurable visual indicators to dictate maintenance schedules.

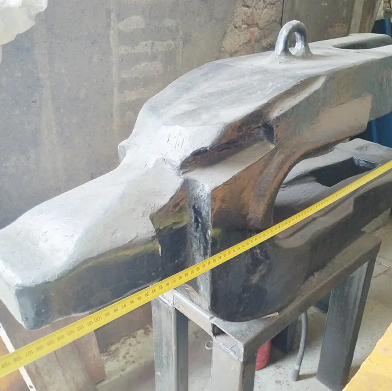

We recommend establishing a strict professional measurement protocol for your maintenance team. Do not just eyeball the steel. Mechanics should use digital calipers to measure active parts against a brand-new spare part. The industry baseline remains very clear on this metric. When the tip becomes heavily rounded and loses one-third to 40% of its original dimension, you must act. Penetration efficiency drops drastically right at this mathematical threshold.
You need to distinguish clearly between abrasive wear and impact wear. Abrasive wear happens in sand and smoothly thins out the metal over time. Impact wear happens in rocky terrain and causes violent structural fractures. Check the high-stress corners regularly.
Decision Point: Look closely at the side walls for hairline fatigue cracks.
Thin side walls operating in rocky conditions pose an immediate snapping risk.
Finding these micro-fractures dictates an instant replacement order.
Outer edge attachments naturally wear out much faster than center ones. Daily bucket rotation and corner-loading into trench walls accelerate friction on these outside edges.
Pro Tip: If wear looks even across the entire set but measures excessively short, it represents a standard lifecycle end.
However, highly localized spot wear indicates secondary problems. It usually points to either poor operator technique or choosing the completely wrong tooth profile for the application.
Your machine provides constant physical feedback during operation. Operators must pay attention to these real-world signals from inside the cab.
Operators feel attachment degradation physically before they see it. You will notice a tangible difference in standard trenching or loading times. When the machine violently bounces over hard material instead of slicing through smoothly, the edges are failing. The equipment "skips" across compacted dirt because it cannot achieve initial ground penetration.
You must identify mechanical looseness early to prevent pin shearing. Listen carefully when manipulating an empty bucket in the air. If the assembly rattles or emits a distinct clicking sound during operation, pay close attention. The internal retaining pins and rubber locks have degraded severely. Continuous cyclical loading causes this internal breakdown. It indicates compromised structural integrity, not just external surface wear.
Dull profiles physically alter your overall bucket fill factor. Operators struggle to scoop a full, heaping load in one motion. They end up lifting partially empty buckets repeatedly throughout the shift. This operational inefficiency directly reduces your overall tons-per-hour metrics. You move significantly less dirt while burning the exact same amount of expensive diesel fuel.
Setting realistic wear expectations prevents maintenance surprises. Soil composition directly dictates exactly how long your parts will survive in the field.
We structured the following evaluation matrix to help operators anticipate upcoming wear cycles accurately.
Soil / Material Type | Impact & Abrasion Level | Expected Lifespan | Maintenance Action |
|---|---|---|---|
Severe Hard Rock & Quarry | Extreme impact, extreme abrasion | 1 to 3 weeks (~60-100 hours) | Requires strict daily visual checks and caliper measurements. |
Sand and Gravel | High abrasive wear, low impact | 1 to 3 months | Check sidewall thinning weekly to prevent snapping. |
Soft Dirt and Clay | Low impact, low abrasive friction | 3 to 6 months (250–500+ hours) | Monitor for rounding at the tip; check pins monthly. |
Fleet managers should recommend implementing a strict rotation schedule for large equipment working in highly abrasive conditions. Moving the less-worn center components to the outer edges balances the wear patterns. This simple, proactive strategy maximizes the total lifespan of the entire set before requiring a full replacement.
Selecting the correct hardware prevents premature breakage. Proper installation procedures ensure maximum operational safety.
Replacing parts like-for-like isn't always the optimal business choice. Your job site conditions might have changed. Consider switching to specialized Tiger profiles if you routinely dig into frozen or heavily compacted soil. Conversely, you should equip heavy Rock profiles if your machine handles severe impact loading in quarries. Match the steel shape directly to the primary ground condition.
We warn buyers against purchasing excavator bucket teeth purely based on extreme hardness ratings. Metallurgy requires careful balance. Making the metal too hard leaves it highly brittle and extremely prone to snapping upon impact. Conversely, metal cast too soft suffers from rapid abrasive degradation. You must look for manufacturers utilizing balanced heat treatments. This ensures both surface durability and internal shock absorption.
Following a standard operating procedure guarantees component safety. Do not skip essential preparation steps during field maintenance.
Clean the Shank Thoroughly: We emphasize this highly skipped step constantly. You must wire-brush the bare adapter perfectly clean. Any leftover dirt or surface rust prevents flush seating. Poor seating leads directly to premature pin failure under load.
Use Fresh Hardware: Always keep spare pins and rubber retainers on hand. Never reuse stressed or bent hardware. Reusing old locking mechanisms instantly compromises the safety of your new attachments.
Verify the Lock: Strike the new pin flush using a proper punch tool. Ensure the rubber retainer fully expands to lock the steel pin firmly in place.
Your ground-engaging tools remain the absolute frontline defense for your machine's overall structural integrity. Maintaining sharp components guarantees better fuel economy and protects expensive internal hydraulic systems. Fleet managers must encourage operators to shift completely away from reactive maintenance. Waiting for steel to snap mid-trench costs thousands in downtime.
Instead, implement proactive replacement protocols using the established 30% length-loss measurement rule. Give your team the right digital tools to evaluate wear objectively. We advise readers to inspect their heavy buckets today using the visual and performance criteria provided above. Finally, audit your current spare parts inventory to ensure you have matching pins and proper profiles ready for the next shift.
A: General industry consensus dictates a 30% to 40% loss of the original length as the maximum acceptable wear. Beyond this specific threshold, machine productivity drops drastically and the risk of permanent bucket damage spikes.
A: No. Manufacturers cast and heat-treat these parts to achieve a very specific structural hardness. Applying welding heat destroys the carefully balanced metallurgy and compromises structural integrity. Full replacement remains the only viable and safe option.
A: Uneven wear typically happens due to edge-loading the bucket into hard materials. Working at steep trench angles also causes this. Standard operational physics dictate outer edges take more friction. Rotating parts periodically mitigates this issue on larger machines.
A: Delaying replacement leads directly to a massive cascade of hidden operational costs. You will experience higher fuel burn and increased stress on hydraulic cylinders. Eventually, raw friction wears down the permanent adapters and lip, costing thousands of dollars to rebuild.
