Product Introduction
>Product Introduction
Grinding media is a kind of carrier be used in ball mill / SAG mill / Tower mill in industries of Mining /Cement / Coal-fired power plant etc, to help grinding & mill mineral materials.

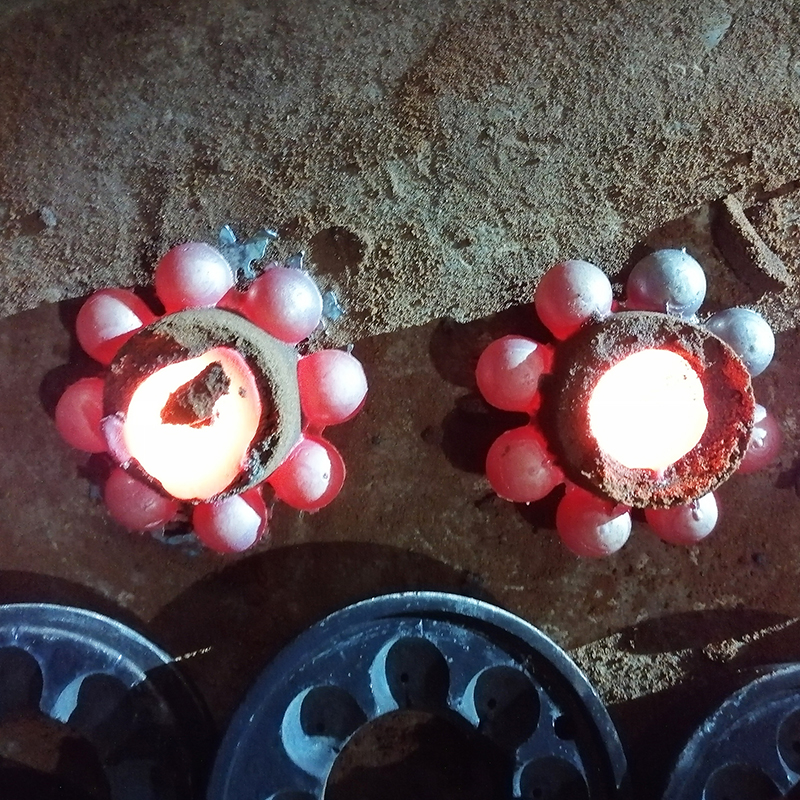

Grinding ball can make by casting and forging. For the casting mill ball, Their production processing was the liquid steel poured into metallic molds or sand molds after melting. The sand molds be used to make small size ball & cylpebs as Φ6- Φ40 mm，metallic molds be used to make large size ball & cylpebs as Φ40- Φ150 mm;
Now the large size grinding ball manufacturing have two different kind of production, one is casting by hand with metallic mold , another one is casting with Full automatic iron mould casting line.

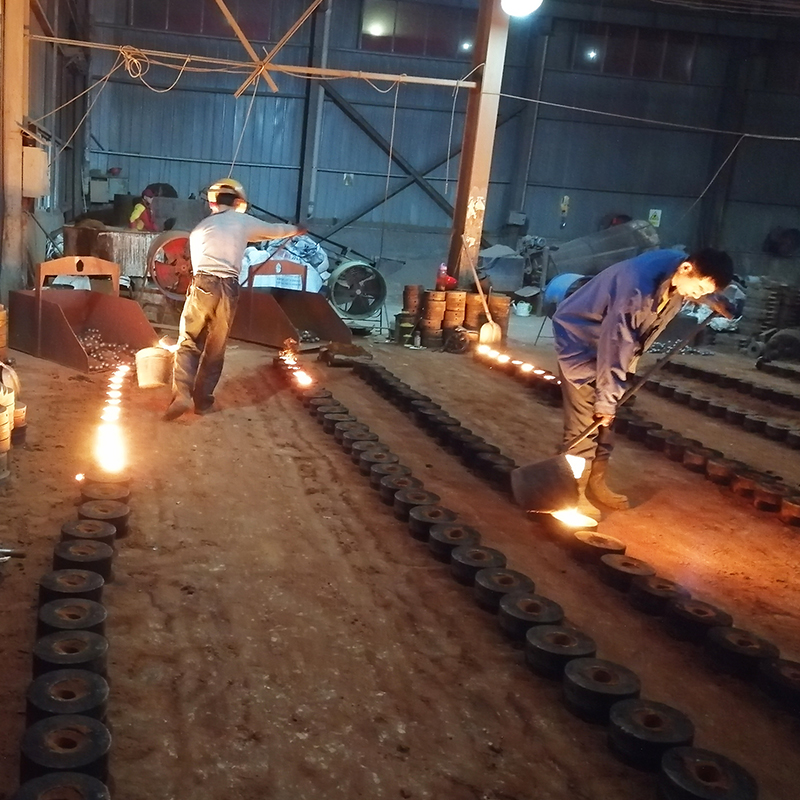

Metallic mold casting by hand advantage are: Low investment, small work-area, flexible production, was better to make low chromuim grinding ball and grinding cylpebs.
>Product Advantage
Lower investment cost

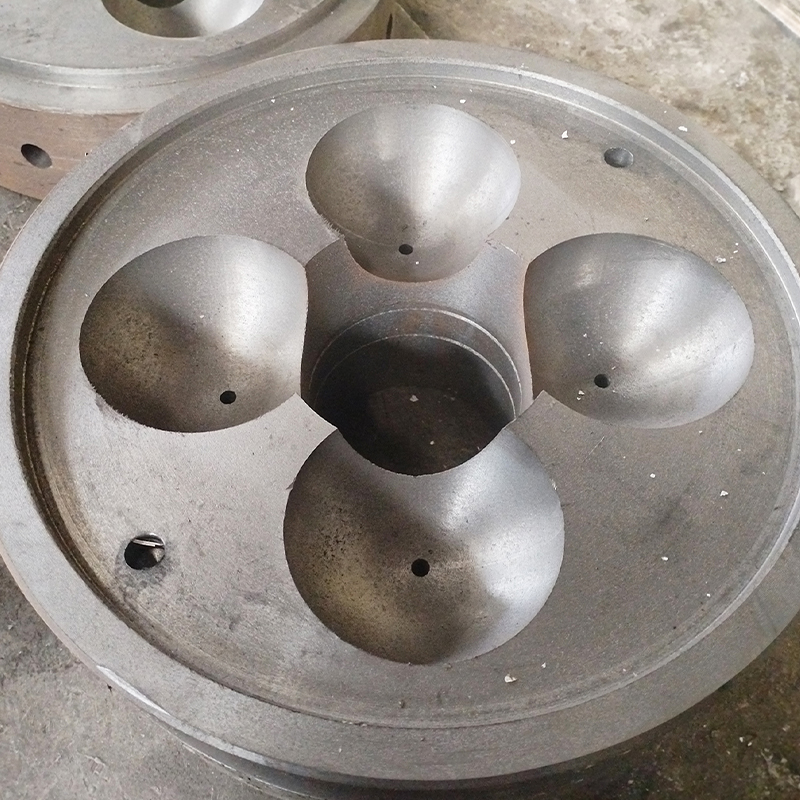

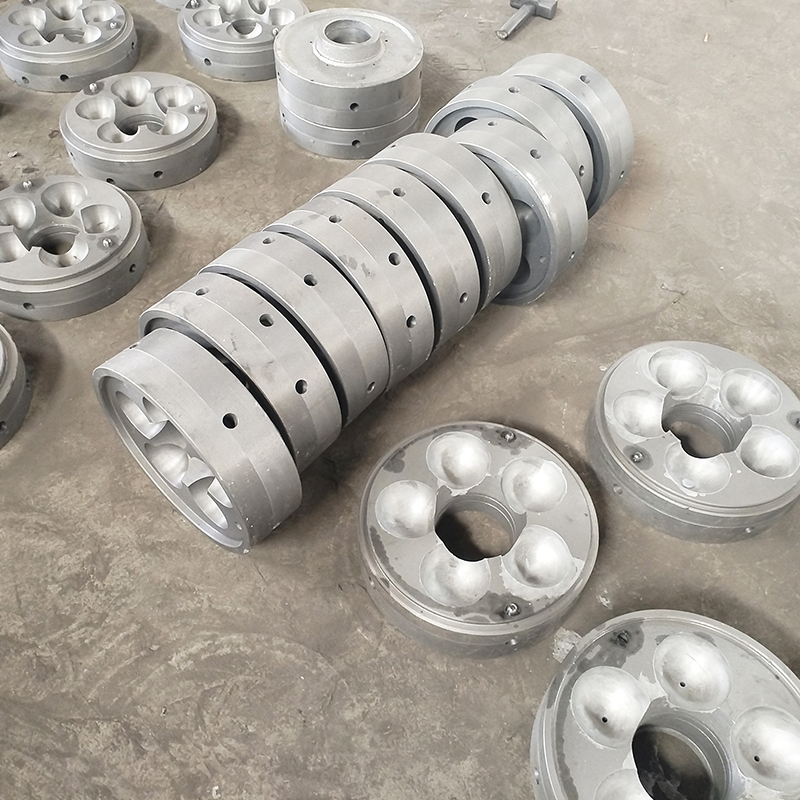

Metallic mold (casting by hand) were small size, light in weight, molds cost is cheap. The reference price is usd 100 - 500 per sets.
Long useful life
This casting metallic mould can used 12-24 months.
Molds can repair
Supplier can repair those iron molds with free when the casting product surface quality is not good, but need buyer arrange to send molds supplier’s workshop and take back by yourself.
Customized casting product size and shap

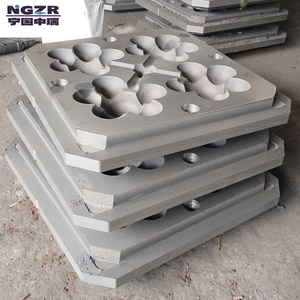

Suplier can follow customer’s requried to make different size and shape of casting product as: Grinding ball (Sphere) / Grinding cylpebs ( Cylinder) / Grinding egg ( Ellipsoid) / Polyhedron Shape (For exsample: octahedron ) and other special customized shape.
Technical Parameters
>Technical Parameters
#1 Grinding media Alloy Chemical Composition: | ||||||||||
Cast grinding media Type |
Item | Chemical Composition ( % ) | ||||||||
C | Si | Mn | Cr | Mo | Cu | Ni | P | S | ||
High Chrome Ultra | ZQCr23 | 2.1-3.3 | ≤1.2 | 0.2-1.5 | 23 - 30 | ≤1.0 | ≤1.0 | ≤1.0 | ≤0.06 | ≤0.06 |
High Chrome Plus | ZQCr18 | 2.1-3.5 | ≤1.2 | 0.2-1.5 | 18 - 23 | ≤1.0 | ≤1.0 | ≤1.0 | ≤0.06 | ≤0.06 |
High Chrome | ZQCr10 | 2.1-3.6 | ≤1.2 | 0.2-1.5 | 10 - 15 | ≤1.0 | ≤1.0 | ≤1.0 | ≤0.06 | ≤0.06 |
Middle Chrome | ZQCr 5 | 2.1-3.6 | ≤1.5 | 0.2-1.5 | 4.0-6.0 | ≤1.0 | ≤0.8 | - | ≤0.08 | ≤0.08 |
Low Chrome | ZQCr 1 | 2.1-3.6 | ≤1.5 | 0.2-1.5 | 1.0-3.0 | ≤1.0 | ≤0.8 | - | ≤0.10 | ≤0.10 |
#2 Grinding media Physical Technical: | ||||||
Cast grinding media Type |
Item | Physical Technical | ||||
Surface Hardness | Breakage Rate | Impact fatigue Falling ball times | Impact Value ( J /cm2 ) | Micro- structure | ||
High Chrome Ultra | ZQCr23 | HRC ≥ 62 | ≤ 1.0 % | ≥ 15000 | ≥ 3.0 | M +C |
High Chrome Plus | ZQCr18 | HRC ≥ 60 | ≤ 1.0 % | ≥ 15000 | ≥ 3.0 | M +C |
High Chrome | ZQCr10 | HRC ≥ 58 | ≤ 1.0 % | ≥ 15000 | ≥ 3.0 | M +C |
Middle Chrome | ZQCr 5 | HRC ≥ 47 | ≤ 2.0 % | ≥ 8000 | ≥ 2.0 | P +C |
Low Chrome | ZQCr 1 | HRC ≥ 45 | ≤ 2.0 % | ≥ 8000 | ≥1.6 | P +C |
Remark: M= Martensite ; C= Carbide ; P= Pearlite ; AF= Acicular Ferrite ; GJS= spheroidal graphite | ||||||
Product Size Φ（mm） | Φ40 / Φ50 /Φ60 | Φ70 / Φ80 | Φ90 / Φ100 | Φ110 / Φ120 | Φ125/ Φ130/ Φ140 / Φ150 |
Diameter Tolerance | + 1.5 mm - 1.0 mm | + 2.0 mm - 1.0 mm | + 2.5 mm - 1.0 mm | + 3.0 mm - 1.0 mm | + 3.5 mm - 2.0 mm |
#4 Grinding balls Weigth : | ||||||||
Size (mm) | Φ20 | Φ25 | Φ30 | Φ40 | Φ50 | Φ60 | Φ70 | Φ80 |
Weight (kg /pcs) | 0.034 | 0.063 | 0.11 | 0.26 | 0.51 | 0.86 | 1.37 | 2.05 |
Q’ty (pcs) per mt | 31506 | 15873 | 9091 | 3891 | 2000 | 1153 | 729 | 487 |
Size (mm) | Φ90 | Φ100 | Φ110 | Φ120 | Φ125 | Φ130 | Φ160 | |
Weight (kg/pcs) | 2.9 | 4.0 | 5.3 | 6.8 | 7.75 | 8.74 | 13.5 | |
Q’ty (pcs) per mt | 345 | 250 | 188 | 147 | 129 | 114 | 74 | |
Product Uses
>Product Application
To make casting high chromium and low grinding media (grinding ball & grinding cylpebs) , this grinding media be used to Ball mill / SAG mill / Tower mill for industries of Mining /Cement / Coal-fired power plant / Concrete (AAC plant) /chemical fertilizer etc
>Product uses
Supplier can provide training and guidance on the production of this handmade mill ball molds.
Video
>Product Processing Video
FAQ
>FAQ
How to require a quotation ?
Please send details of your requirement to us by E-mail, we will send quotation to you within 3 working days.
How to require a sample & trial order ?
Please send your requirement to us，we will check and confirmed to you within 3 days.
Sample order quantity can be 1 set. Cargoes delivery by express or by Air.
What is your MOQ ?
Product MOQ is 1 set per each size;
Order MOQ is 20 sets per each shipment;
What is your order Lead-time ?
Order Quantity: 1- 100 sets, the lead-time is 20-30 days after order deposit;
Order Quantity: more than 100, the lead-time is 30-60 days after order deposit;
What is your export product package ? How to transport ?

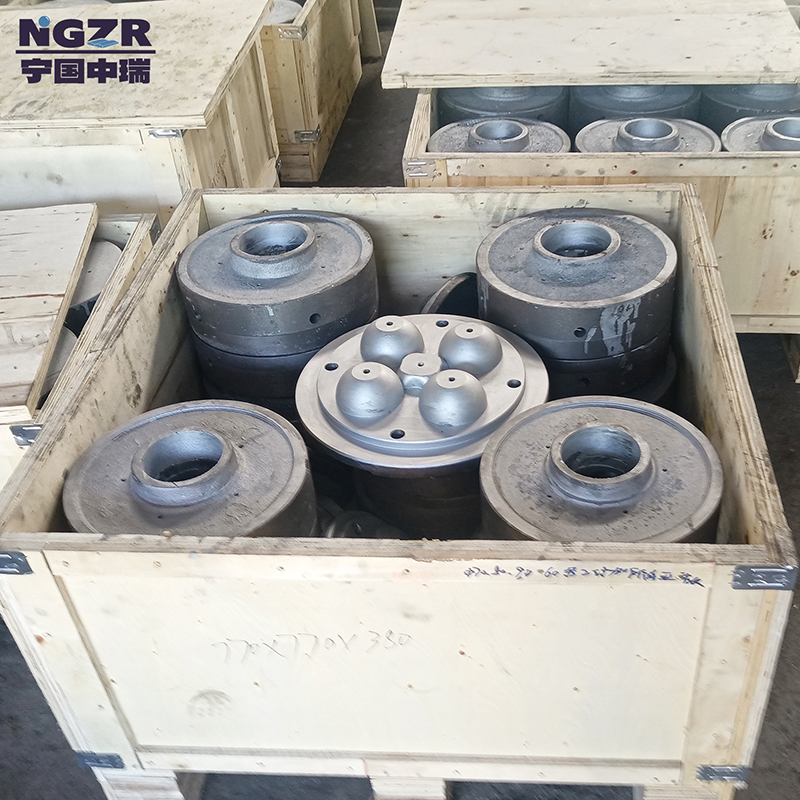

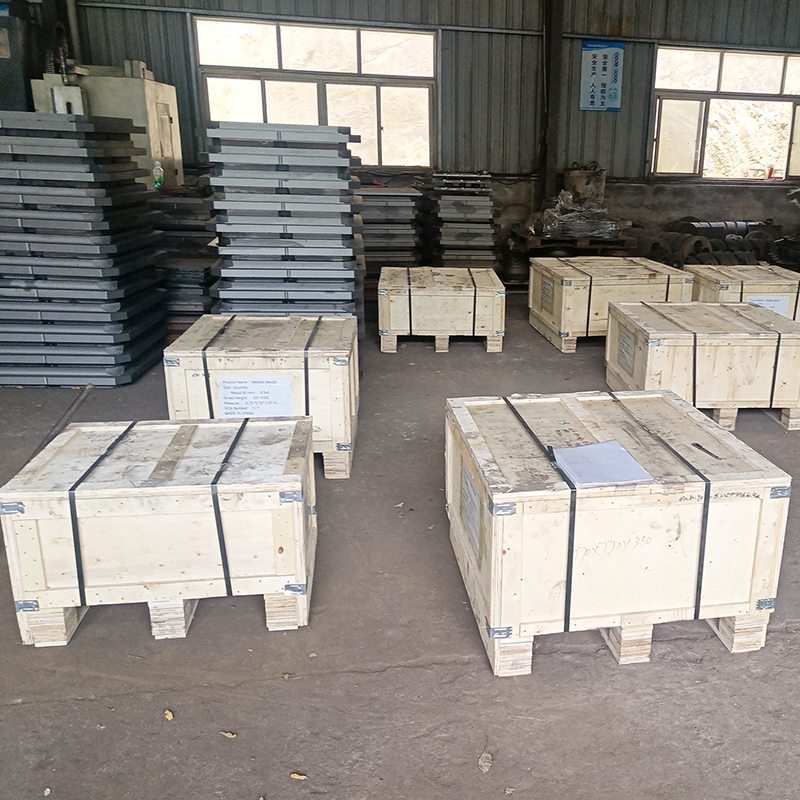

Our product export package is Wooden Box;
For oversea customer, we will shipping with container , or transport by train or truck .
What is your price term ?
With different price & quantity of contract, We accept different payment term as below:
1. 30% T/T in advance, balance T/T before shipment ( Quantiy less than 200 sets);
2. 20% T/T in advance, balance O/A 30-60 days ( Quantiy200-1000 set);
What is your price term ? How to loading cargoes?
We can do price term as below:
#1 EXW factory, including VAT tax, Loading cargoes in our factory ( Ningguo city, Anhui );
#2 FOB Shanghai / Ningbo Port, Container loading cargoes in our factory;
#3 CIF Port of delivery, Shipping with container by sea;
#4 DAP place of delivery; Transport with container by sea & by train;
