Product Introduction
>Product Introduction
Hammer crusher is a type of equipment that crushes minerals in the form of impact, directly crush minerals from max particle size of 600-1800 mm to less than 25 mm. Hammer crushers are suitable for crushing medium hardness minerals such as limestone, slag, coke, coal, etc. in industrial sectors such as cement, chemical, power, metallurgy, etc.

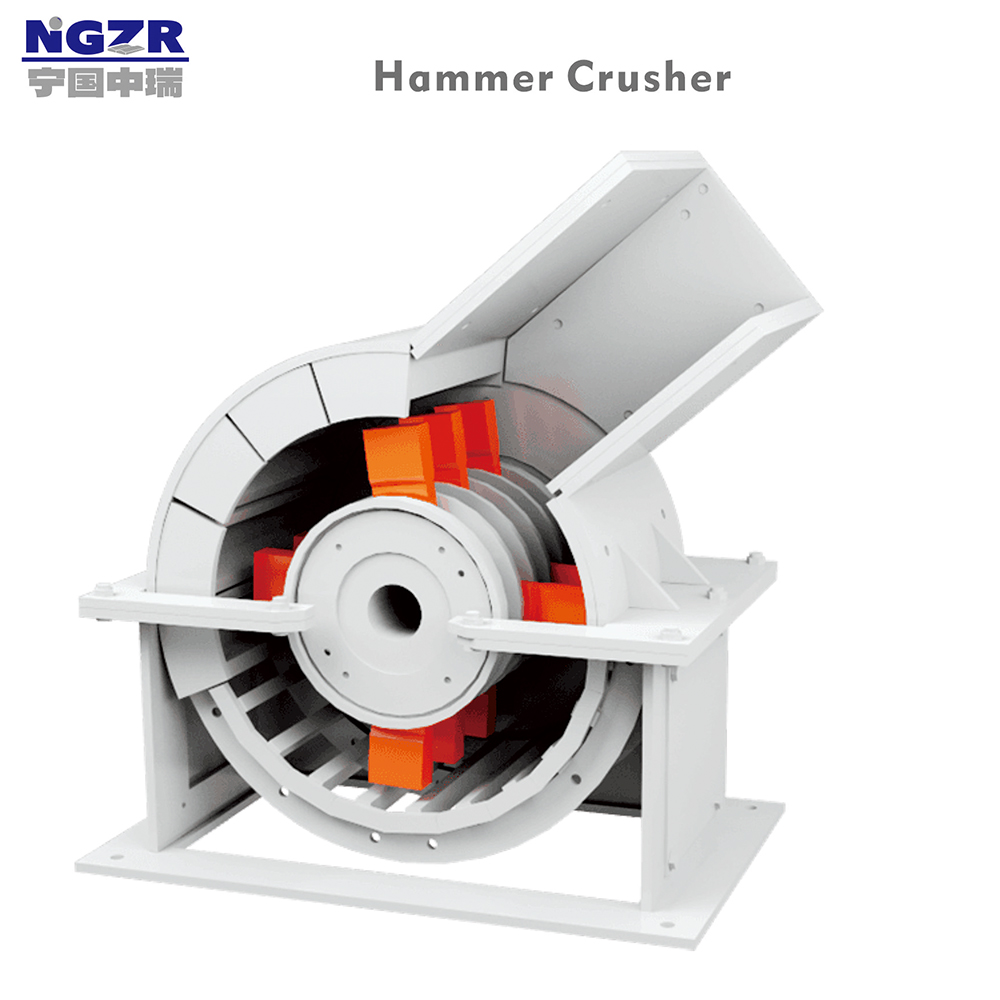

The hammer crusher is composed of a chassis, rotor, hammer head, impact lining plate, sieve plate, etc.

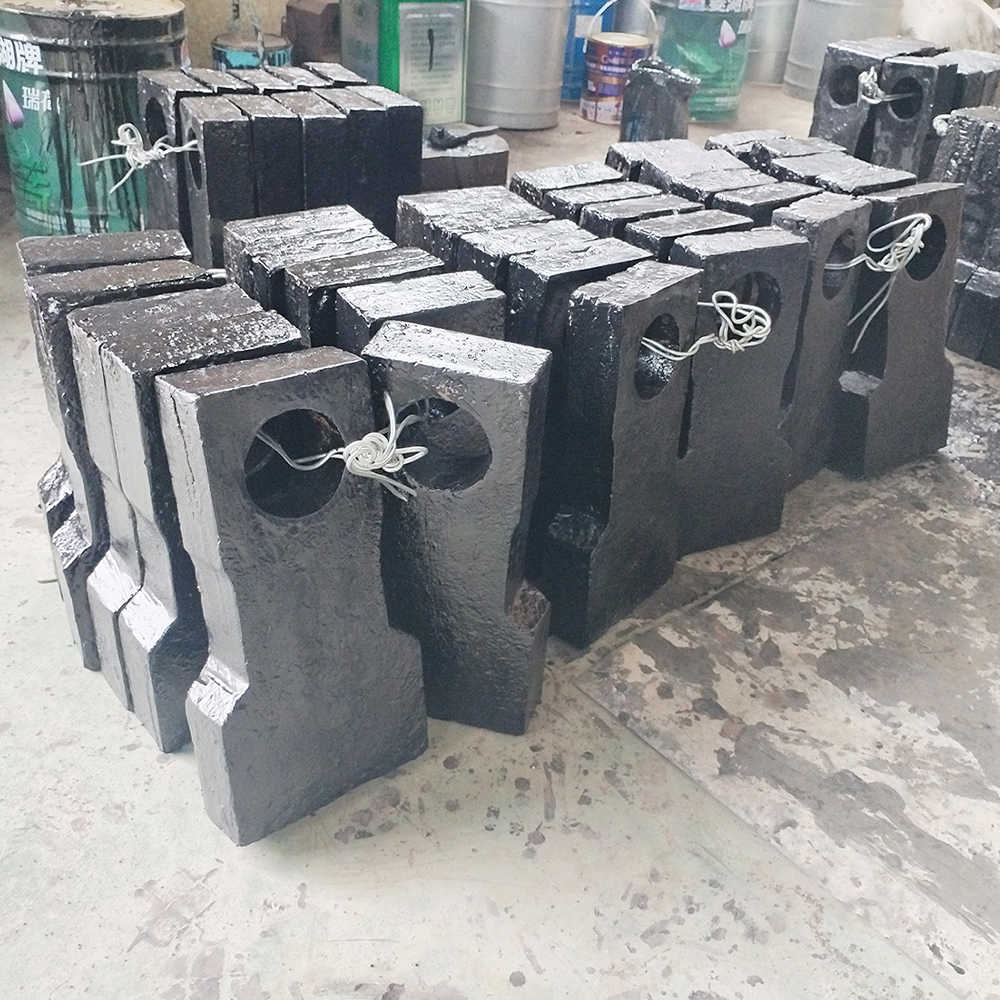

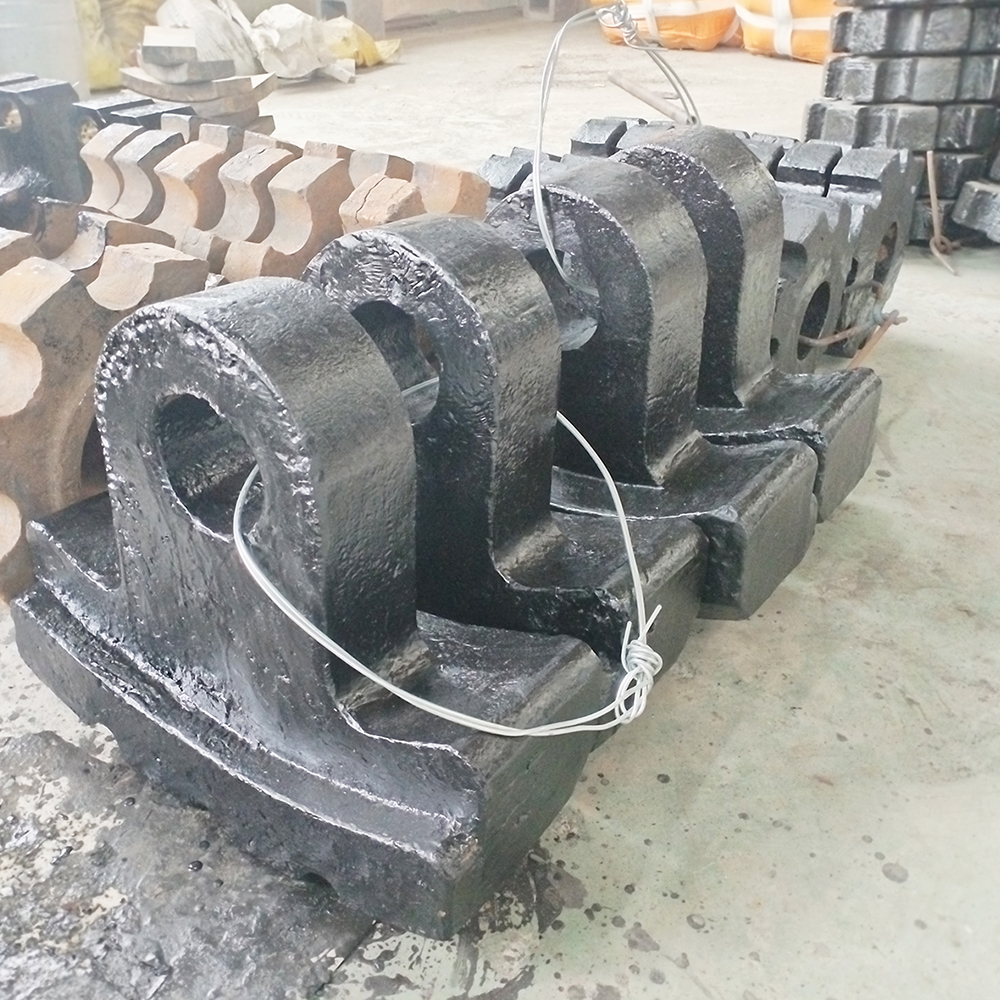

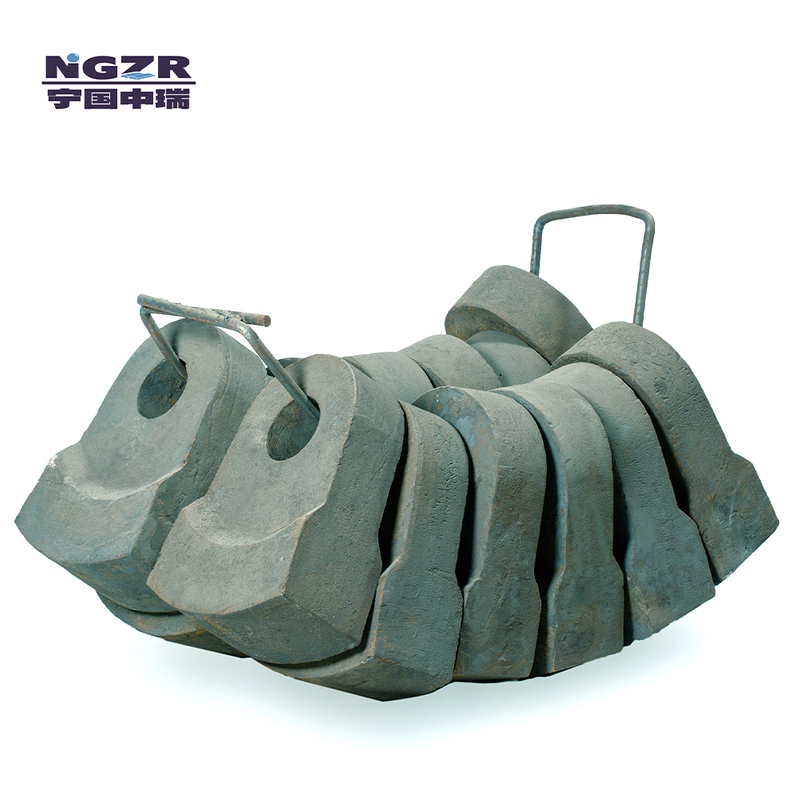

1. Hammer head
The hammer head is the most important working component of a hammer crusher. The quality & shape and material of the hammer head determine the production capacity of the hammer crusher.
The kinetic energy of the hammerhead is proportional to its weight. hammerhead was heavier, the kinetic energy will greater, and the crushing efficiency will higher. The hammerhead has a complete range of weight types, from min. 15 kg to max. 298 kg. Multiple hammerhead weights can be customized according to customer needs.
The hammerhead is made of a new high-quality Cr-Mn alloy steel composite casting, its service life is several times that of ordinary hammerheads.

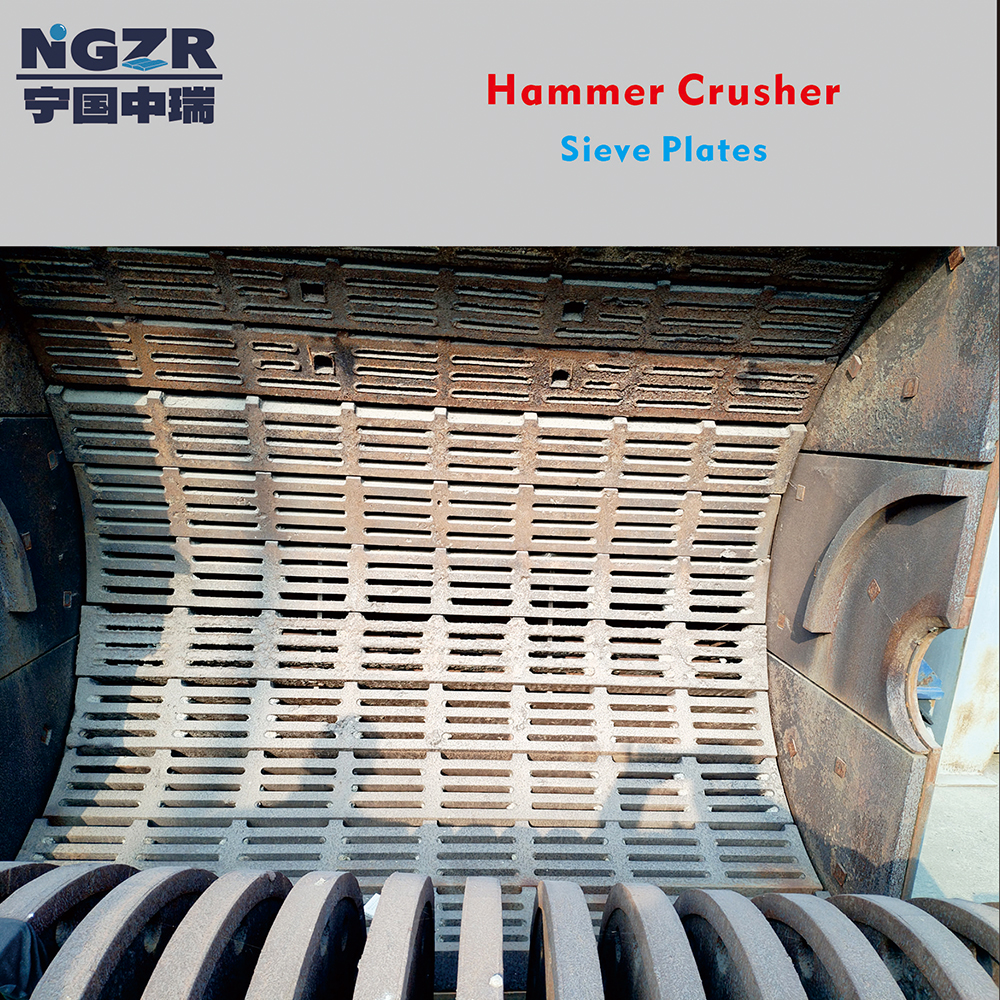

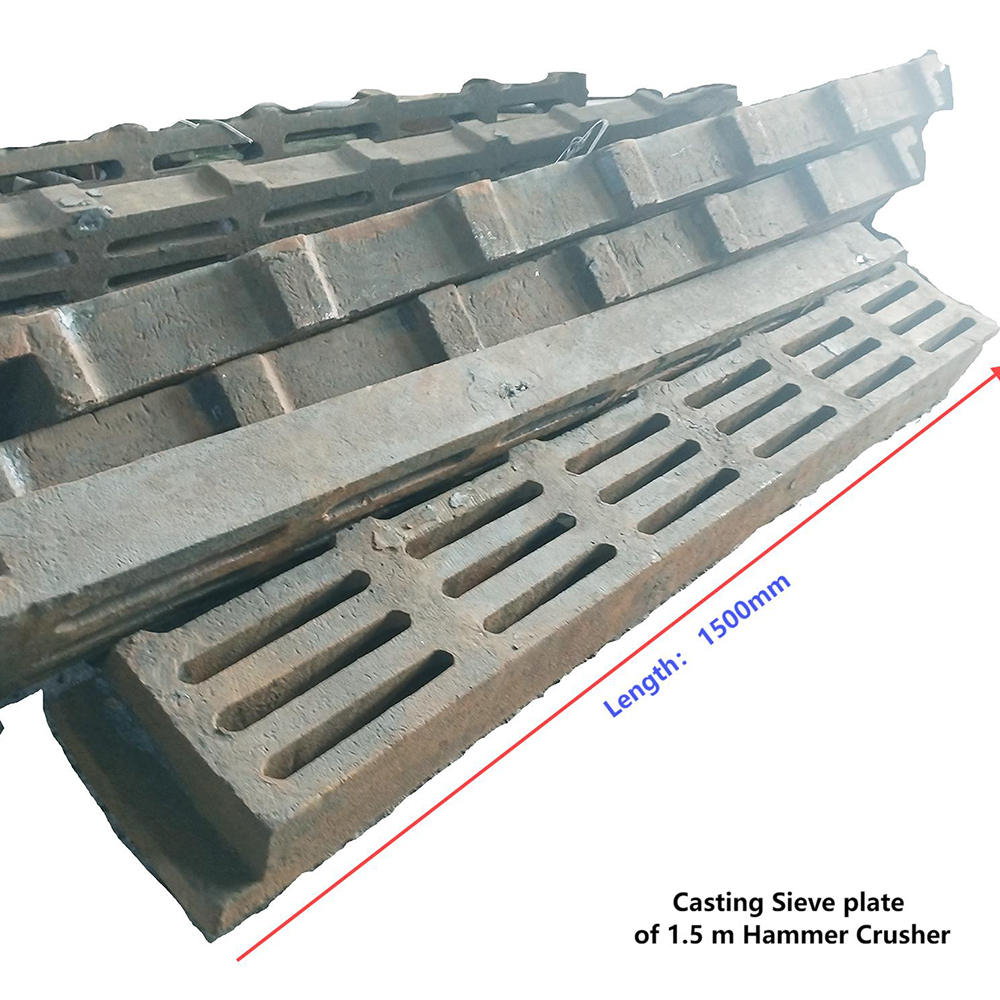

2. Impact liner & Sieve plate
The hammer crusher uses the hammer head to strike the ore at high speed, and the ore has a great speed and kinetic energy in an instant. In order to prevent wear of the crusher frame, Mn-cr alloy steel is used to lining plate on the inner wall of the frame and impact liner & sieve plate , ensuring superior wear resistance and impact resistance of the lining plate and sieve plates.
Due to the harsh working environment of the hammer crusher, its quality determines its service life, and the quality of the hammer crusher is determined by the materials of its constituent components.
>Product Advantage
Relatively stable quality
High Mn-Cr alloy steel casting wear-parts have been used with a longer usage time history than other kind materials.
NGZR have more than 10 years experience of R&D / Manufacutring / After-sales srevice for High Mn & High Cr casting wear parts (such as high Chrome casting gridning media and high Mn-Cr alloy cast mill liner & crusher hammer & Jaw plate etc.) in Mining and Cement Indusries.
Lower usage cost
Mn-Cr alloy steel cast waer part (hammer & Liner) have long usage life with stable quality. Because NGZR have large production capacity with Advanced Lost foam process full Automatic precision casting line and Resin-sand Wooden mould manual casting production line, we can provide more competive price products to all customers. So customer will get lower production unit cost than before.
Customized alloy Steel composition

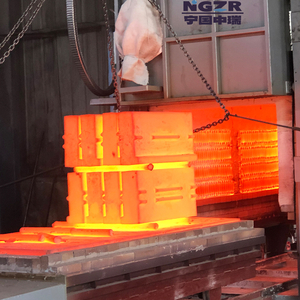

NGZR foundry was able to match customer needs to readjust the Chemical Composition of alloy steel content (Mn /Cr) , or increased other special metallic element (Si /Mo /Cu /Ni etc), through special heat-treatment processing, can help this casting mill liner achieve to special Mechanical performance, to follow different customer’s different working conditions.
Customized drawing size and shape
NGZR foundry can follow customer’s drawing of exist crusher wear part to customized . Also we can revised the exist wear parts shape / thickness and wearing quality to help customer get lower wear-parts cost and higher production efficiency.
Door to door measure & Installation Guide
If customer can’t provide drawing of existing hammer crusher, NGZR will arrange our service engineer come to measuring and design of the one-stop service with free of charge.
If customer required, NGZR provide door to door installation guide serivce with pay charge.
Technical Parameters
>Technical Parameters
| #1 Alloy Chemical Composition: | |||||||||
ITEM | C | Si | Mn | P | S | Cr | Mo | Ni | Cu |
Mn13Cr2 | 1.05-1.35 | 0.3-0.9 | 11-14 | ≤0.06 | ≤0.04 | 1.5-2.5 | -- | -- | -- |
Mn13Cr2Mo | 1.05-1.35 | 0.3-0.9 | 11-14 | ≤0.06 | ≤0.04 | 0.4-1.2 | 0.4-1.2 | -- | -- |
Mn18Cr2 | 1.05-1.35 | 0.3-0.9 | 16-19 | ≤0.06 | ≤0.04 | 1.5-2.5 | -- | -- | -- |
Mn22Cr2 | 1.05-1.35 | 0.3-0.9 | 20-22 | ≤0.06 | ≤0.04 | 1.5-2.5 | -- | -- | -- |
Cr26Ni5 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.06 | ≤0.04 | 24-28 | ≤0.50 | 4-6 | -- |
Cr26Ni12 | 0.2-0.5 | ≤0.20 | ≤0.20 | ≤0.06 | ≤0.04 | 24-28 | ≤0.50 | 11-14 | -- |
Cr25Ni20Mo | 0.35-0.45 | ≤0.20 | ≤0.20 | ≤0.06 | ≤0.04 | 23-27 | 1.1-1.4 | 19-22 | -- |
Cr15Mo2 | 2-2.8 | ≤0.10 | 0.5-1.0 | ≤0.10 | ≤0.06 | 13-18 | 1.5-2.5 | 0-1.0 | 0-1.2 |
Cr20Mo2Cu | 2-3.0 | ≤0.10 | 0.5-1.0 | ≤0.10 | ≤0.06 | 18-22 | 1.5-2.5 | 0-1.0 | 0.8-1.2 |
Cr26Mn | 2-3.0 | ≤0.10 | 0.5-1.0 | ≤0.10 | ≤0.06 | 23-28 | 0-1.5 | 0-2.0 | 0.8-1.2 |
Remark: we can make any other type of alloy materials for customized. | |||||||||
| #2 Product Physical Technical: | |||||
ITEM | Yield strength Yp0.2 / MPa | Tensile Strength Rm / MPa | Impact absorption KU2 /J | Hardness HBW | Micro -structure |
Mn13Cr2 | ≥ 390 | ≥ 735 | ≥ 96 | ≤ 300 | A + C |
Mn13Cr2Mo | ≥ 390 | ≥ 735 | ≥ 96 | ≤ 300 | A + C |
Mn13Cr2Ni3 | ≥ 370 | ≥ 705 | ≥ 118 | ≤ 300 | A + C |
Mn18Cr2 | ≥ 390 | ≥ 735 | ≥ 96 | ≤ 300 | A + C |
Cr26Ni5 | ɑ ɓ(MPa) 590 | A + F | |||
Cr26Ni12 | ɑ ɓ(MPa) 490 | A + F | |||
Cr25Ni20Mo | ɑ ɓ(MPa) 490 | A + F | |||
Cr15Mo2 | HRC ≥ 53 | M+ A + C | |||
Cr20Mo2Cu | HRC ≥ 58 | M+ A + C | |||
Cr26Mn | HRC ≥ 55 | M+ A + C | |||
M= Martensite ; C= Carbide ; A= Austenitic ; F= Ferritic ; | |||||
Remark: we can make any other special mechanical properties for customized | |||||
Product Uses
>Product Application
Used to industries of Mining , cement, chemical, coal -fried power, metallurgy, Sandstone aggregate etc.
>Product design & uses
How to choose correct alloy material and shape to reduce production cost?
1.Fit the existing crusher to choose hammer size
The kinetic energy of the hammerhead is proportional to its weight. hammerhead was heavier, the kinetic energy will greater, and the crushing efficiency will higher. The hammerhead has a complete range of weight types, from min. 15 kg to max. 298 kg. Multiple hammerhead weights can be customized according to customer needs.
The hammerhead is made of a new high-quality Cr-Mn alloy steel composite casting, its service life is several times that of ordinary hammerheads.
2.Fit the RCM to choose the liner thickness size
The RCM ( reliability-centered maintenance) time of crusherl become loner, the crusher liner thickness size should be increased. However, the liner thickness size increased, the liner total weight will enlarge, so the liner purchased cost will rised.
3.Design the better shape of crusher liner & hammer
The better shape of hammer & liner will help crusher have more effective crushing, increased the production capaciy and quality!
NGZR can help customer to Research & Develop the hammer & liner shape for existing hammer crusher machiery.
Video
>Product Processing Video
FAQ
>FAQ
How to get a commerical offer ?
Please send your hammer crusher details (Machinery brand /specifications / wear- parts drawing ) and purchase quantity to us, we will send the commerical offer to you by E-mail within 3 working days .
How to place an order if we have not wear-part drawing ?
Please contact with us, NGZR will arrange a Service Engineer to your crusher workshop to measure on site, then we will draw the dimensions drawing and send to you approved. After you approved the drawing, we can confrim the order and arrange to produce.
What is your MOQ ?
For the Hammer Crusher wear part, MOQ is one sets of whole hammer crusher wear-parts.
What is your order Lead-time ?
The order lead-time is 30-60 days after get deposit;
What is your payment term ?
1. 30% T/T in advance, balance T/T before shipment ;
2. O/A 30- 180 days;
What is your price term ?
We can do price term as below:
#1 EXW factory, including VAT tax;
#2 FOB Shanghai / Ningbo Port;
#3 CIF Port of delivery;
#4 DAP place of delivery;
Do you provide the Installation Service?
Yes, we provide the Installation Service，we can arrange a Service Engineer team to your crusher workshop to install, but this service need you pay all charge of this instal service..
And also we provide the Installation Guide by video / phone with free (didn’t arrive to your workshop).
Do you provide the guarantee of useful life time?
We can guarantee the time of hammer crusher useful life, this will mark on contract.
